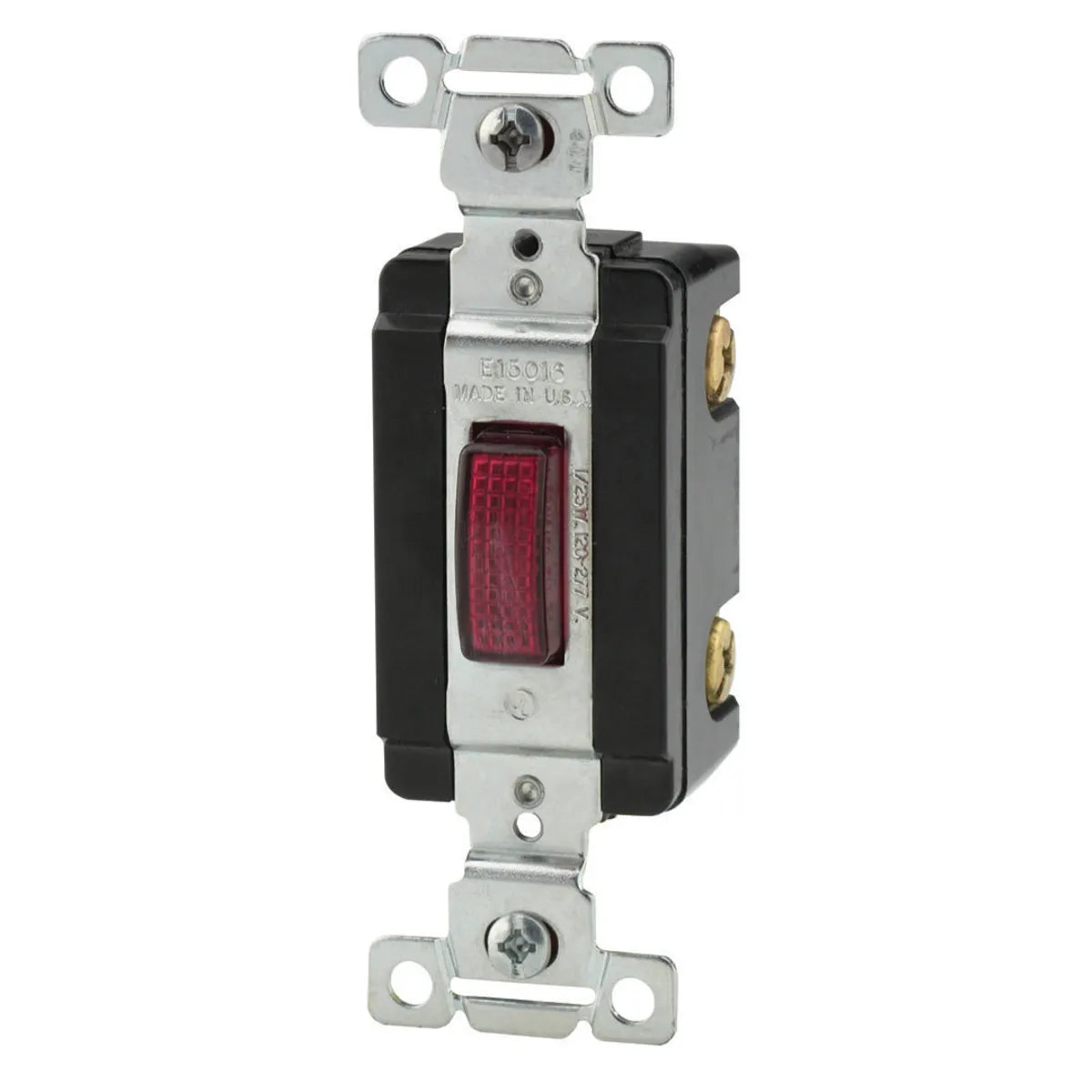

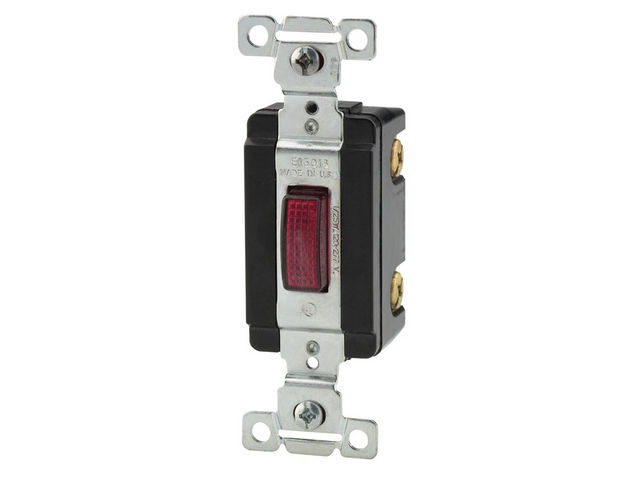

Bryant 480710 Opal Neon Pilot Lite 120V AC

Product Description

The Bryant 480710 Opal Neon Pilot Lite is designed for switches and lighting controls. Operating at 120V AC, this pilot light assembly features an opal color. It is suitable for indoor dry environments unless protected by additional means. The pilot light assembly ensures a reliable service life contingent on voltage variations.

• Voltage: 120V AC
• Operating Temperature Range: -40°C to 75°C
• Screw Mounting for Secure Installation

Product Highlights

The Bryant 480710 pilot light assembly is ideal for environments where efficient, visible signaling of electrical circuits is crucial.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 480710
• Country of Origin: United States

Technical Specifications

• Catalog Number: 480710
• Color: Opal
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: Neon Pilot Light
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
• Series: Neon Pilot Lights
• UPC: 781786685109
• Current Rating: 0.00032 A
• Wattage: 1/25th
• Brand: Bryant
• Voltage: 120 VAC
• Country of Origin: United States
• Special Features: Standard Product
• Width: 1.300 in
• Description - Invoice: PLIOT, OPAL, 120V
• Harmonization Code: 8531809051
• Make: Bryant
• Manufacturer: Hubbell Incorporated
• Category: Motors and Electrical Equipment > Switches
• Model code: 480710
• Wiring method: Back and Side
• Item: Switch
• Amperage Rating: 3.2-4A
