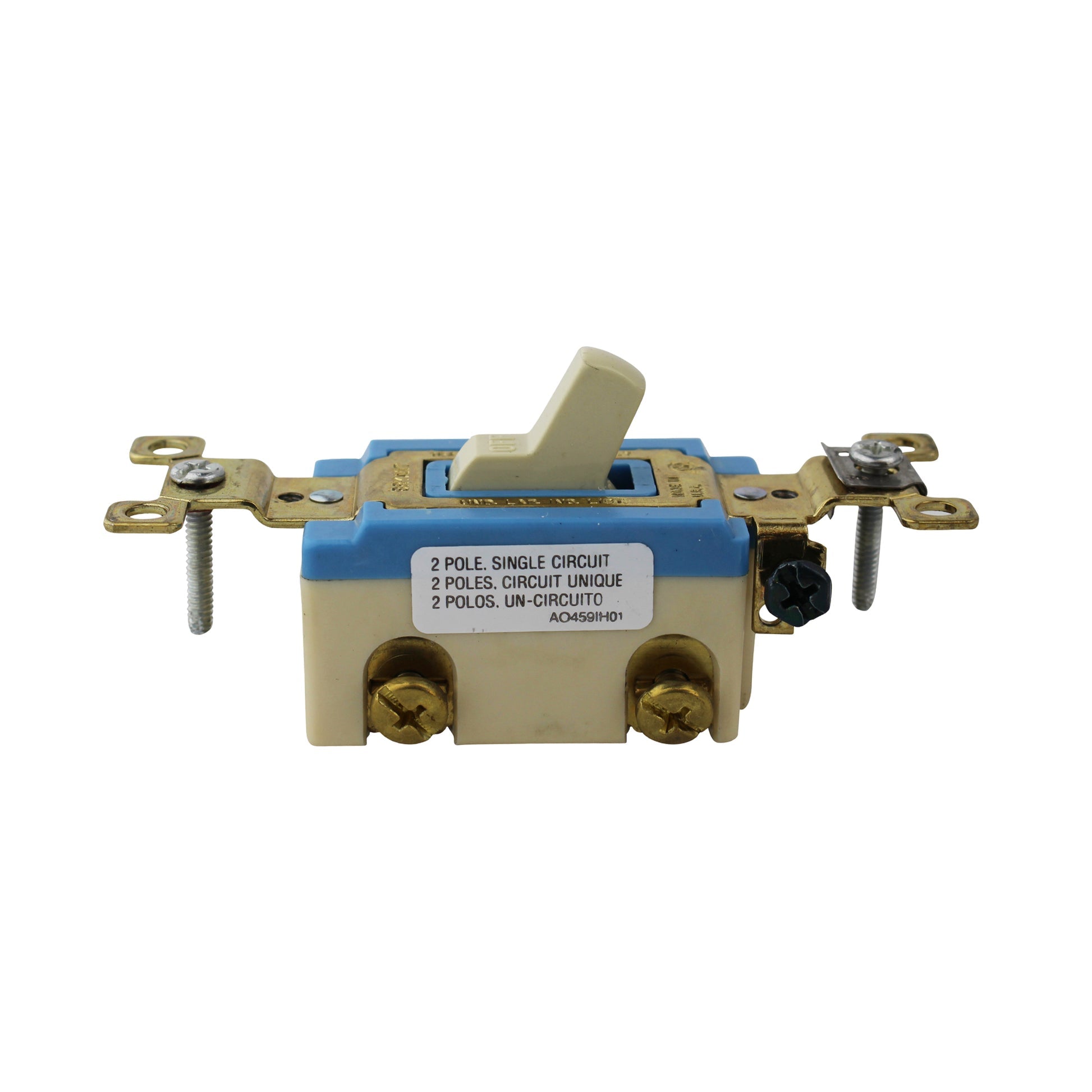

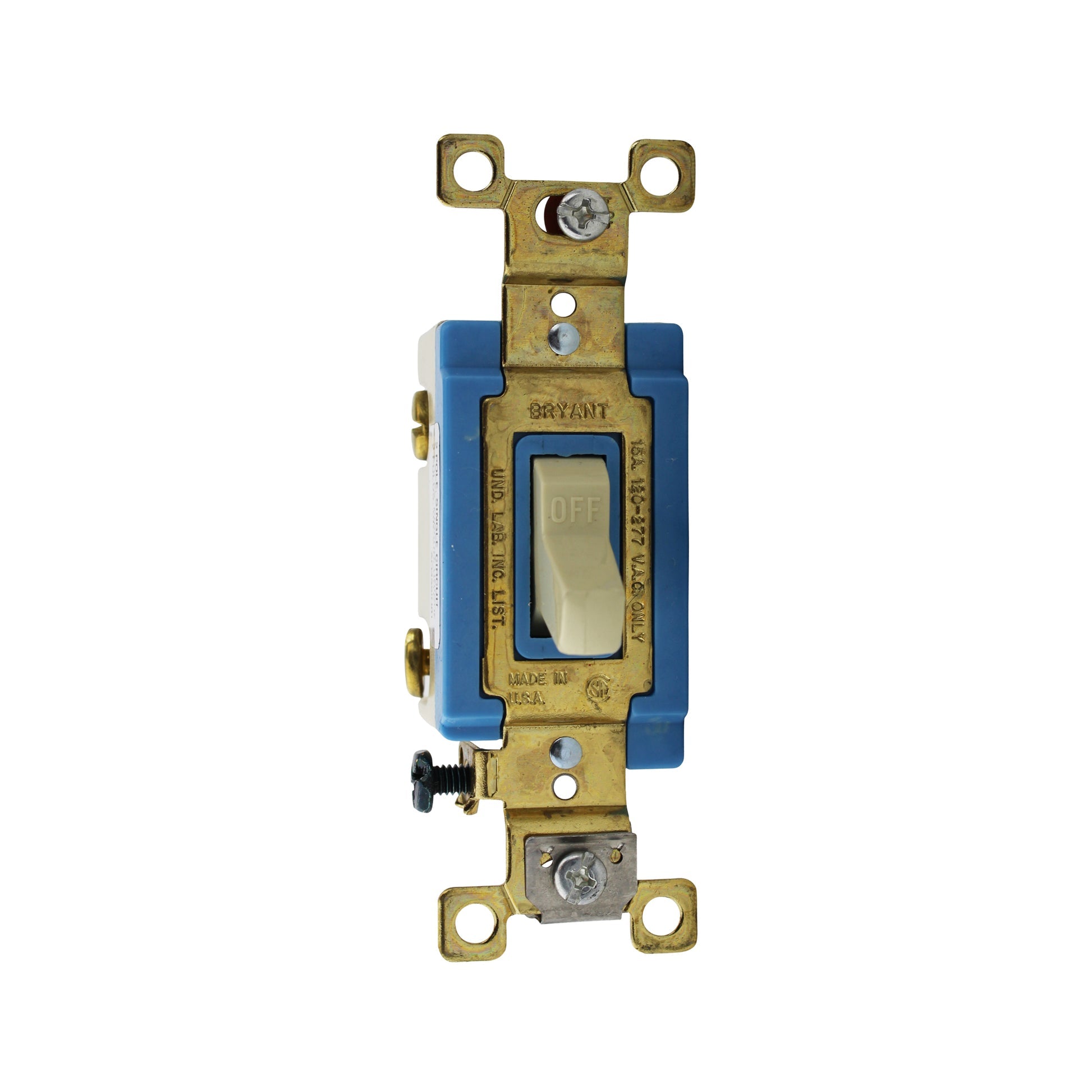

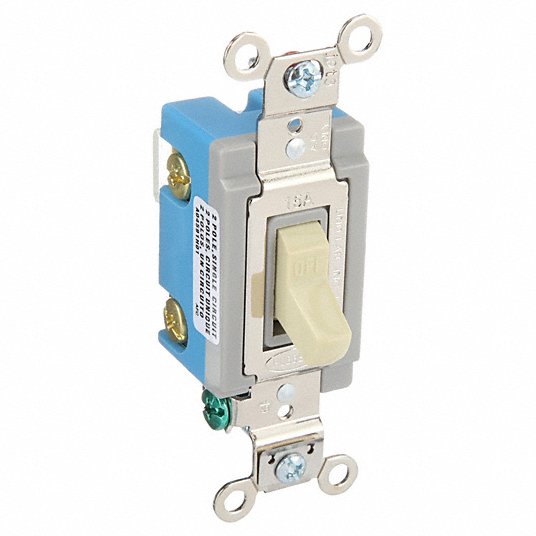

Bryant 4802I Wall Switch Double Pole 120/277V AC 15 A

Product Description

The BRYANT 4802I is a toggle wall switch that manually flips between on and off positions to control connected circuits. It provides power control for electric devices and equipment such as ceiling fans, lights, outlets, and appliances. This industrial grade, double pole switch is rated for 15A at 120/277V AC.

• Industrial Grade
• Double Pole
• Back and Side Wired

Product Highlights

The BRYANT 4802I toggle switch is ideal for controlling electrical circuits in industrial applications. It features back and side wiring and is UL/CSA/NOM certified.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4802I
• Country of Origin: China

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 4802I
• Current Rating: 15 A
• Features: Switches and Lighting Controls, Industrial Grade, ToggleSwitches, General Purpose AC, Double Pole, 15A 120/277V AC, Back and SideWired, Ivory
• Horsepower Rating: 2 hp
• Illuminated: No
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Pilot Light: No
• Standards: UL/CSA/NOM
• Switch Function: Maintained
• Switch Style: Toggle
• Switch Type: Double Pole
• Voltage Rating: 120/277V AC
• Wire Connection Type: Screw Terminals
• Color: Ivory
• Wiring Method: Back/Side
• UNSPSC: 39121507
• Application: Back and Side Wired
• Catalog Number: 4802I
• Series: Extra Heavy Duty
• Amperage Rating: 15 A
• Current / Amperage Rating: 15 A
• Voltage Rating Description: 120/277 VAC
• Model: 4802I
• Item Height: 1.600
• Item Width: 1.900
• Item Length: 4.200
• Length: 4.200
• Width: 1.900
• Depth: 1.900
• Amps AC: 15 A
• Voltage AC: 120 to 277
• Locking: No
• Application Environment: Industrial
• Rated HP: 1/2 to 2
• Switch Material: Nylon
