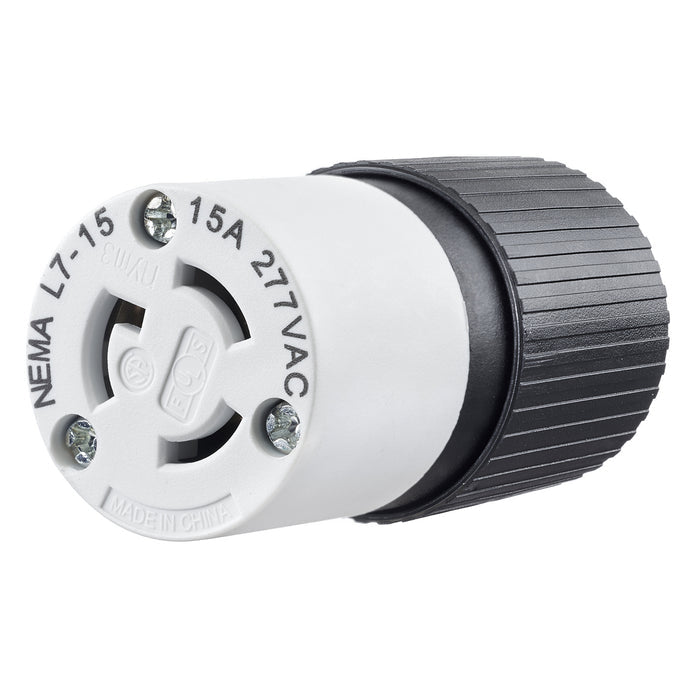

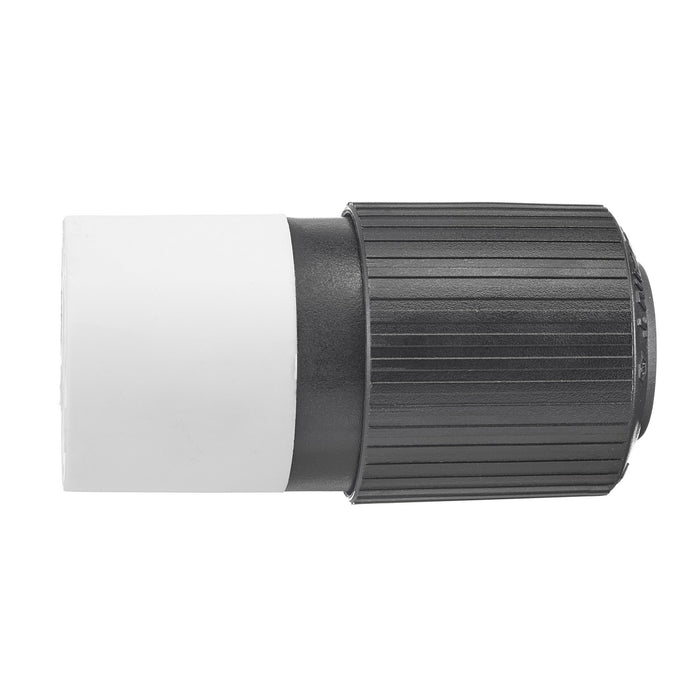

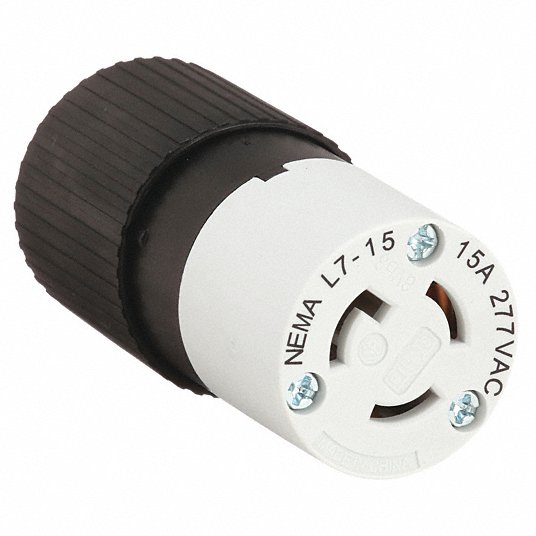

Bryant 4779NC Industrial Female Connector Body 15A 277V L7-15R

Product Description

The BRYANT 4779NC is an industrial-grade female connector body designed for heavy-duty applications. This connector features alignment keys for easy assembly and amperage, voltage, and NEMA configuration imprinted on the face for easy identification. Constructed from impact and chemical-resistant toughened nylon.

• Face and body feature alignment keys for easy assembly

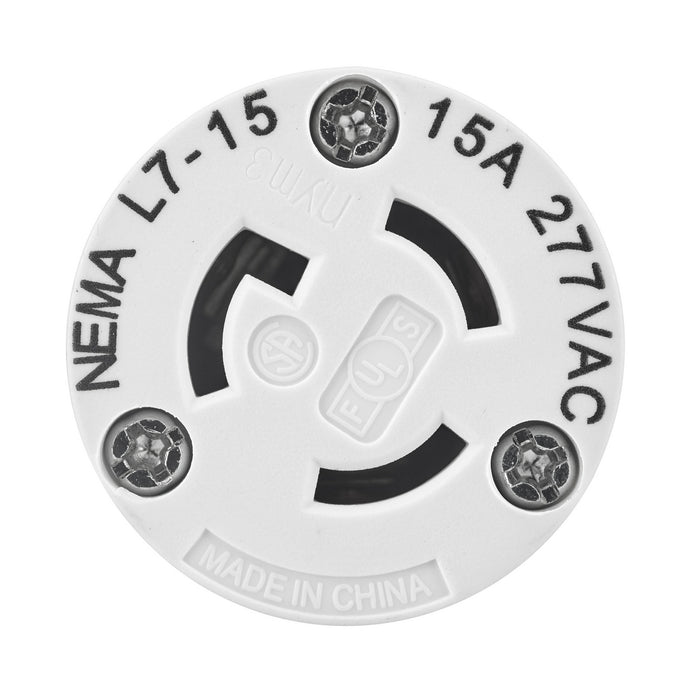

• Amperage, voltage and NEMA configuration imprinted on face for easy identification
• Impact/chemical resistant, toughened nylon construction

Product Highlights

Industrial-grade connector with secure cord retention and durable nylon construction, ideal for demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4779NC
• Country of Origin: China

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 4779NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 15A Triple Gripper Nylon Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
• Type: Connector Body
• UPC: 781786010406
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Voltage Rating: 277 VAC
• Voltage Rating Description: 277 VAC
• Conductor Range: #14 AWG to #12 AWG
• Number of Conductors: 3-Wire Grounding
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG
• Nema Rating: L7-15R
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• Voltage: 277 Volts
• Connector Type: Plug in
• Plug Type: Type L
• Product Grade: Industrial
• Specification Met: NEMA
• Cap Type: No Cap or Cover
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Black; White
• Housing Material: Composite
• IP Rating: IP20
• Maximum Operating Temperature: 75 C
• Maximum Wire Size: 10 AWG
• Midget Locking: No
• Minimum Operating Temperature: -40 F
• NEMA Configuration: L7-15
• NEMA Enclosure Rating: Not Rated
• NEMA Receptacle Configuration: L7-15R
• Overall Length: 1.53 in
• Phase: Single
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121421
• Model: Bryant
• MPN: 4779NC
