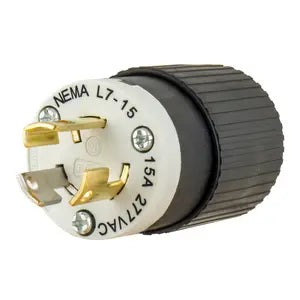

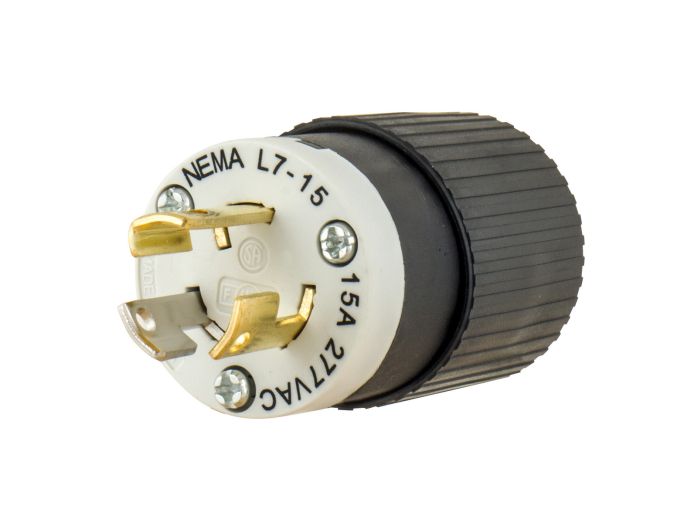

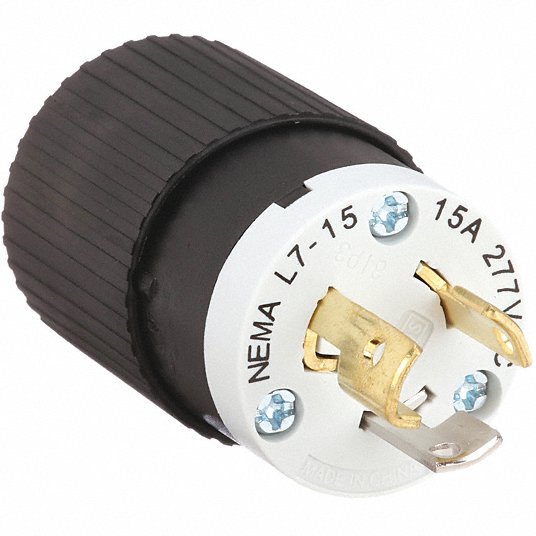

Bryant 4770NP Locking Devices Industrial Male Plug 15A 277V L7-15P

Product Description

The BRYANT 4770NP is an industrial male plug designed for secure cable-to-plug connections in industrial and commercial power applications. It is ideal for environments where vibration or movement could disrupt connections. This plug features screw terminals and is suitable for plant floors and manufacturing facilities.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Captive, combination Slot/Phillips assembly screws

Product Highlights

Industrial male plug with a non-slip design and secure cord retention for heavy-duty applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4770NP
• Country of Origin: China

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 4770NP
• Color: Black, White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 15A Triple Gripper Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786010307
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 277 VAC
• Voltage Rating Description: 277 VAC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG
• Nema Rating: L7-15P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Brand: BRYANT
• Manufacturer Part Number: 4770NP
• Body Length: 1.53 in
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• For Environment: Dry
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Color: Black; White
• Housing Material: Composite
• IP Rating: IP20
• Maximum Wire Size: 10 AWG
• Minimum Wire Size: 14 AWG
• NEMA Configuration: L7-15
• Number of Blades: 3
• Outside Diameter: 1.53 in
• Overall Length: 1.53 in
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: NEMA WD-1; NEMA WD-5; UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Locking Devices, Industrial, Male Plug, 15A 277V AC, 2-Pole 3-Wire Grounding, L7-15P, Screw Terminal, Black and White
• Voltage: 277 VAC
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
