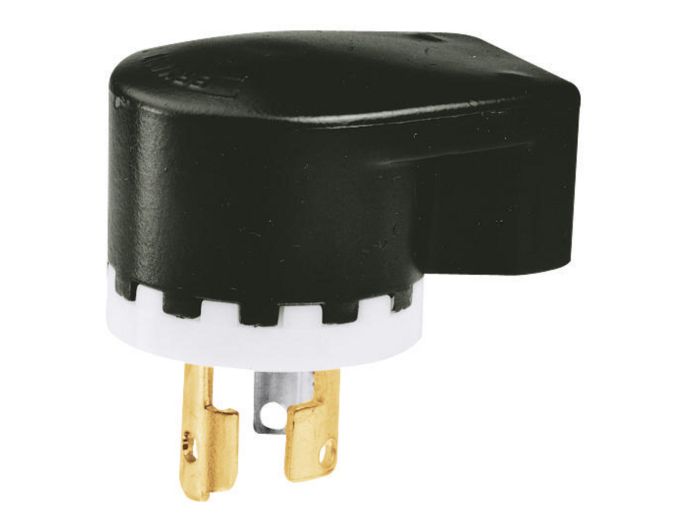

Bryant 4722N Male Plug 15A 125V L5-15P

Product Description

The BRYANT 4722N is an industrial male plug designed for locking devices. Rated at 15A and 125V, this 2-pole, 3-wire grounding plug features a L5-15P NEMA configuration and screw terminals. Constructed from composite material, it is suitable for extra heavy-duty industrial applications in indoor dry environments.

• Rated at 15A and 125V
• Features screw terminals for connectivity
• Suitable for extra heavy-duty industrial applications

Product Highlights

Industrial grade male plug with 15A 125V rating and L5-15P NEMA configuration.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4722N
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 4722N
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 15A Regular Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Two-Piece Cord Clamp
• Type: Plugs
• UPC: 781786656451
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG
• Nema Rating: L5-15P
• Cord Type: All Listed Portables
• Manufacturer Part Number: 4722N
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Input Voltage: 120 V
• Brand: BRYANT ELECTRIC, INC.
• Features: Locking Plug
• Nema Configuration: L5-15P
• Grade: Industrial
• Resistance Features: Impact-Resistant
• Minimum Cord Diameter (Decimal Inch): 0.3000
• Maximum Cord Diameter (Decimal Inch): 0.6550
• Number Of Phases: 1
• Standards: UL Listed; CSA Certified
• UNSPSC Code: 39121400
