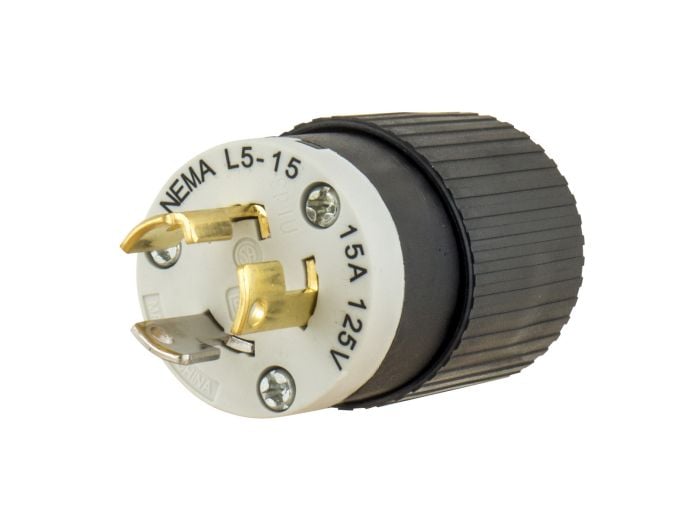

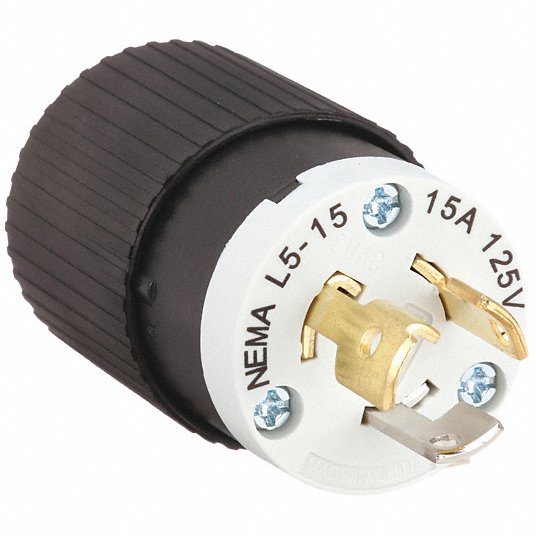

Bryant 4721np locking twist plug 15A

Product Description

The BRYANT 4721NP locking twist plug is a male plug designed for industrial applications. Rated at 15A and 125V, this plug features a wide-rib, non-slip hand grip and a configuration-specific face to prevent contamination. It has screw terminals and an internal self-centering cord grip for secure cord retention. Ideal for plant floors and manufacturing facilities.

• Wide-rib, non-slip hand grip
• Configuration-specific plug face prevents contamination
• Internal self-centering cord grip ensures secure cord retention

Product Highlights

Industrial grade locking plug with secure grip and robust construction for demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4721NP
• Country of Origin: United States

Technical Specifications

• Brand: Bryant Electric
• Material: Composite
• Connector Type: Plug in
• Plug Format: Type B
• Amperage: 15 A
• Application: Extra Heavy Duty Industrial
• Catalog Number: 4721NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 15A Triple Gripper Nylon Plug
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786010000
• Connectivity: Screw Terminals
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG
• Nema Rating: L5-15P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Plug Type: L5-15
• Maximum Input Current: 15a
• Output Voltage: 125 V
• Recommended Environment: Indoor
• Features: Locking Plug
• Country of Origin: United States
• Manufacturer Part Number: 4721NP
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Connection Type: Plug
• NEMA Configuration: L5-15P
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Body Length: 1.53 in
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Face Diameter: 1.38 in
• For Environment: Dry
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Material: Composite
• IP Rating: IP20
• Maximum Wire Size: 10 AWG
• Midget Locking: No
• Minimum Wire Size: 14 AWG
• Number of Blades: 3
• Outside Diameter: 1.53 in
• Overall Length: 1.53 in
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: NEMA WD-1; NEMA WD-5; UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
