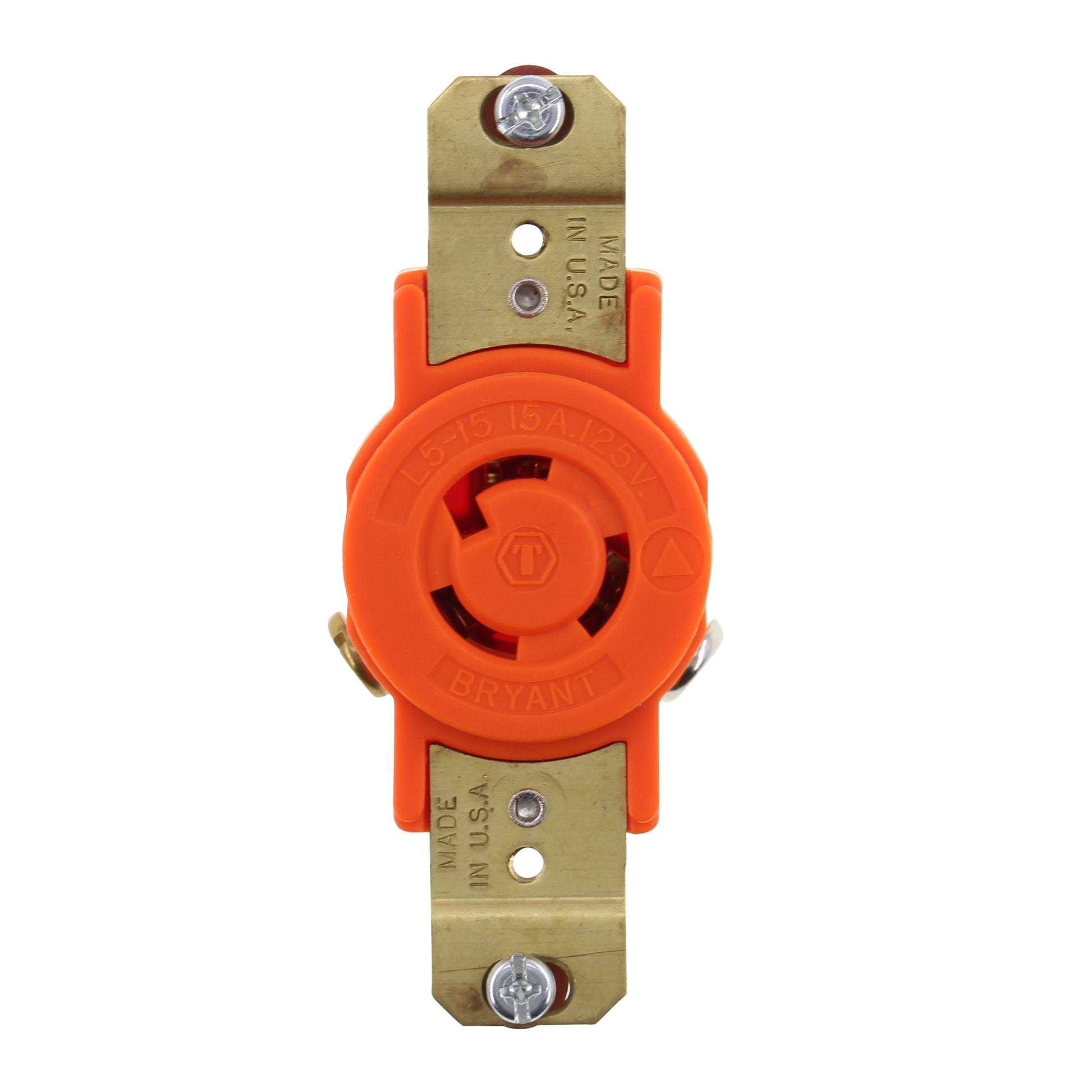

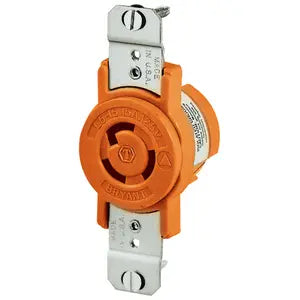

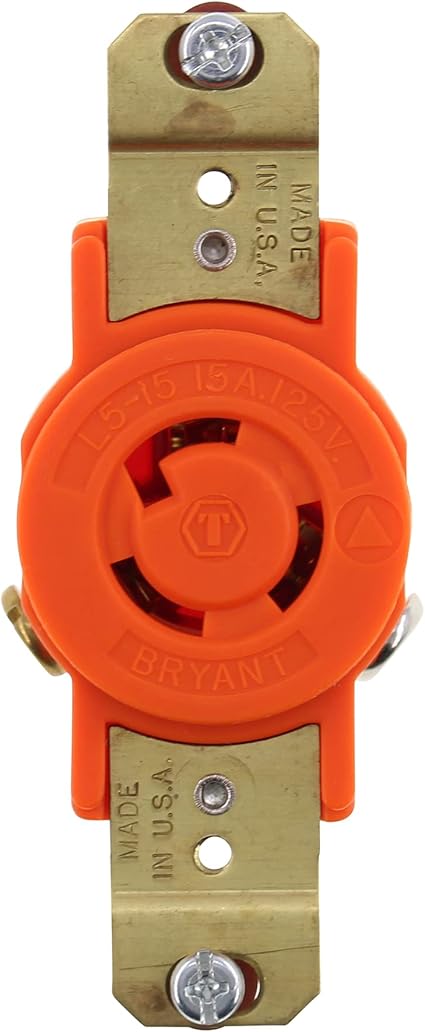

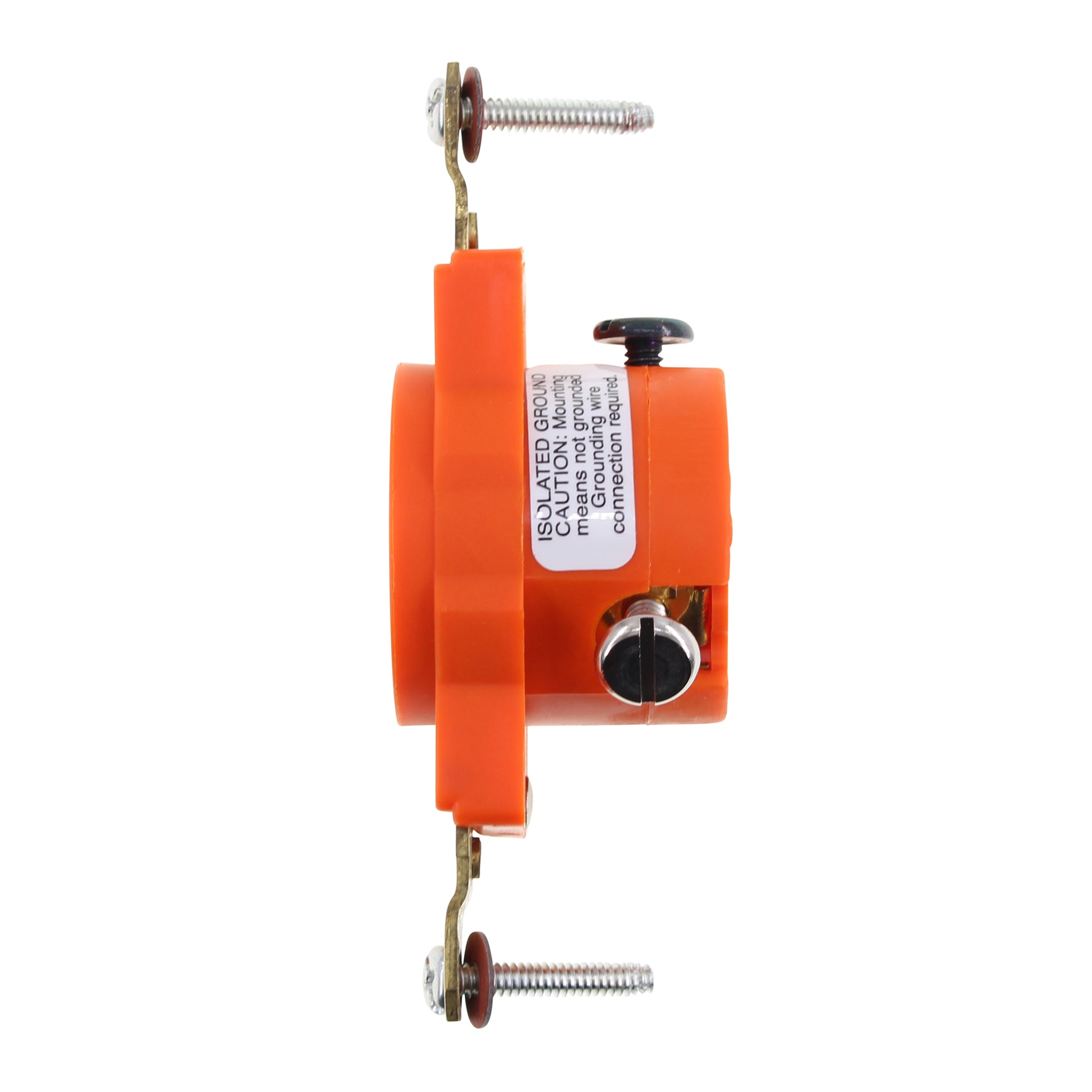

Bryant 4710ig Single Receptacle, L5-15r, 15a, 125v, 1-pack

Product Description

The BRYANT 4710IG is a single receptacle, L5-15R, 15A, 125V. This isolated ground locking receptacle features reinforced thermoplastic construction and single-piece, all-brass contacts. All terminals are back and side wired. It is suitable for extra heavy-duty industrial specification grade applications and indoor dry environments.

• 15-Amp 125-Volt
• Isolated Ground Locking Receptacle
• All terminals are back and side wired

Product Highlights

The BRYANT 4710IG receptacle is ideal for industrial applications requiring a reliable and robust isolated ground connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4710IG
• Country of Origin: China

Technical Specifications

• Brand: Bryant Manufacturing
• Manufacturer Part Number: 4710IG
• Color: Orange
• Voltage: 125 Volts
• Amperage: 15 Amps
• Total Power Outlets: 1
• Specification Met: NEMA
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Body Type: Straight
• Connection Type: Receptacle
• NEMA Configuration: L5-15R
• Watertight: No
• Isolated Ground: Yes
• Approvals: CSA, UL
• Application: Extra Heavy Duty Industrial Specification Grade
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 15A Nylon Single Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Locking
• Style: Isolated Ground
• Type: Single Receptacle
• UPC: 781786656147
• Amperage Rating: 15 A
• Connectivity: Terminal Screws
• Current Amperage Description: 15 Amp
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L5-15R
• Standards - RoHS Compliance Status: CM
• Model: 4710-IG
• Country of Origin: China
• Package quantity: 1
