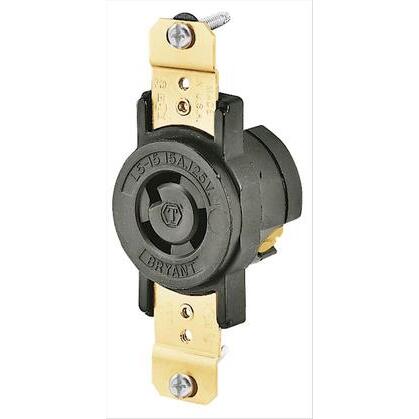

Bryant 4710 Locking Devices Industrial Flush Receptacle 15A 125V L5-15R

Product Description

The BRYANT 4710 is an industrial-grade flush receptacle designed for locking connections. Rated at 15A and 125V, this 2-pole, 3-wire grounding receptacle features a L5-15R NEMA configuration and screw terminals. Its reinforced thermoplastic construction and all-brass contacts ensure durability and reliable performance in demanding environments.

• Reinforced thermoplastic construction
• Single piece, all brass contacts
• All terminals are back and side wired

Product Highlights

Ideal for industrial applications requiring secure and dependable electrical connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4710

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 4710
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 15A Nylon Single Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786174016
• Amperage Rating: 15 A
• Connectivity: Terminal Screws
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L5-15R
• Standards - RoHS Compliance Status: CM
• Voltage: 125 Volts
• Amperage: 15 Amps
• Model: 4710
• Part Number: 4710
• Included Components: Electrical Receptacle
• Unit Count: 1.0 Count
• Item Type Name: Electrical Receptacle, Electrical Outlet
