Bryant 460R7W Heavy Duty Products IEC Pin and Sleeve Devices 60A 3-Phase Delta 480V AC REPLACEMENT 460R7W

Product Description

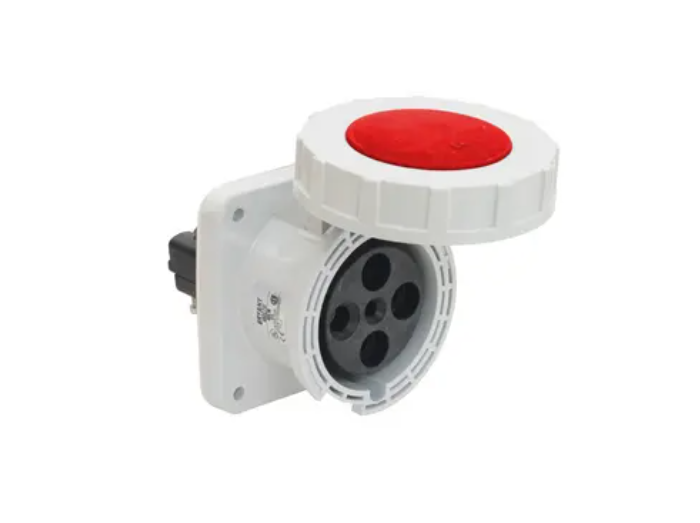

The BRYANT 460R7W is a heavy-duty, industrial-grade female receptacle designed for high ampacity connections. This IEC pin and sleeve device supports 60A 3-Phase Delta 480V AC power with screw terminals and a watertight design. It features 3-pole, 4-wire grounding for secure and reliable performance in demanding environments.

• Industrial Grade
• Female Receptacle
• 60A 3-Phase Delta 480V AC

Product Highlights

Ideal for industrial applications requiring robust and watertight power connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 460R7W
• Country of Origin: United States

Technical Specifications

• Application: High Ampacity Connections
• Catalog Number: 460R7W
• Color: Red
• Environmental Conditions: Watertight
• EU RoHS Indicator: Yes
• Item Type: Single Flanged
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Watertight - IP67
• Type: Receptacle
• UPC: 781786251502
• Amperage Rating: 60 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 60 A
• Phase: Three Phase
• Voltage Rating: 3 Phase 480 V
• Voltage Rating Description: 3 Phase 480V
• Wattage: 28800
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #8 AWG to #2 AWG
• Nema Rating: Non-NEMA
• Brand: Bryant
• MPN: 460R7W
• Manufacturer Part Number: 460R7W
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Ps, Iec, Recp, 3P4W, 60A 3P 480V, W/T
• Connection Type: Receptacle
• Connection Description: Water Resistant
• Voltage: 480 V
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: No
• Protection Rating: IP67
• Approvals: CSA, UL
