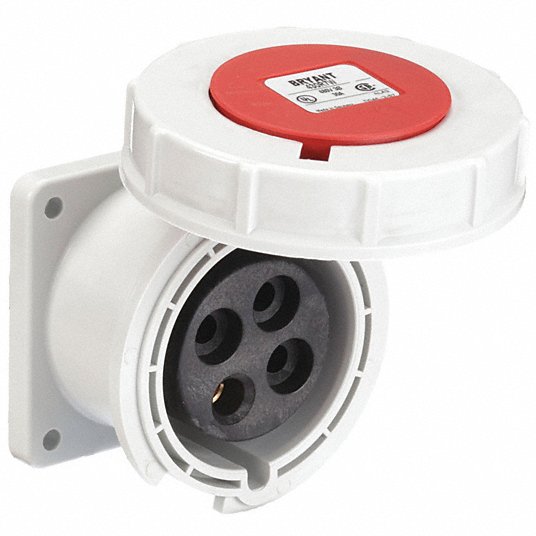

Bryant 430R7W iec Pin and Sleeve Devices 30A 3-Phase Delta 480V AC

Product Description

The BRYANT 430R7W is an industrial grade female receptacle, designed for high ampacity connections. This IEC pin and sleeve device supports 30A 3-Phase Delta 480V AC power, and features a 3-pole, 4-wire grounding configuration. Ideal for wet or damp environments where splashing is expected.

• Industrial Grade
• Female Receptacle
• 30A 3-Phase Delta 480V AC

Product Highlights

Watertight receptacle designed for high ampacity connections in harsh environments, ensuring reliable power delivery.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 430R7W
• Country of Origin: Germany

Technical Specifications

• Application: High Ampacity Connections
• Catalog Number: 430R7W
• Color: Red
• Environmental Conditions: Watertight
• EU RoHS Indicator: Yes
• Item Type: Single Flanged
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Watertight - IP67
• Type: Service Outlet
• UPC: 781786251274
• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 30 A
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 480V AC
• Voltage Rating Description: 3 Phase 480V
• Wattage: 14400
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #12 AWG to #8 AWG
• Nema Rating: Non-NEMA
• Brand: BRYANT
• MPN: 430R7W
• Suitable For: Interior
• Current Type: AC
• Number in Pack: 1
• Model: BRY430R7W
• Polarized type: Nylon material
• UL 1682, UL 1686, CSA C22.2, CE, NOM approval: None
• Impact Resistant: None
• Moisture Resistant: None
• Water Tight: None
• Spring Door: None
• Manufacturer Part Number: BRY430R7W
• Cap Type: Spring-Loaded
• Cap: None
• Connection Orientation: Straight
• Features: Neoprene Sealing Glands
• Flange Type: Flanged
• GFCI: No
• Grounding: Grounded
• Grounding Style: IEC
• Horsepower Rating: 7-1/2
• Housing Color: Red
• Housing Material: Composite
• IP Rating: IP67
• Maximum Wire Size: 1/0
• Minimum Wire Size: 3
• NEMA Enclosure Rating: Not Rated
• Number of Gangs: 1
• Power Indicating Light: No
• Reverse Service: No
• Shrouded: Yes
• Standards: IEC
• Switch Rated: No
• Wire Connection Type: Screw Terminals
• UNSPSC: 39121406
• Rating - Volts: 480V AC 3 Phase
• Rating - Amps: 30
• Door Type: Spring
• Application Rating: Watertight
