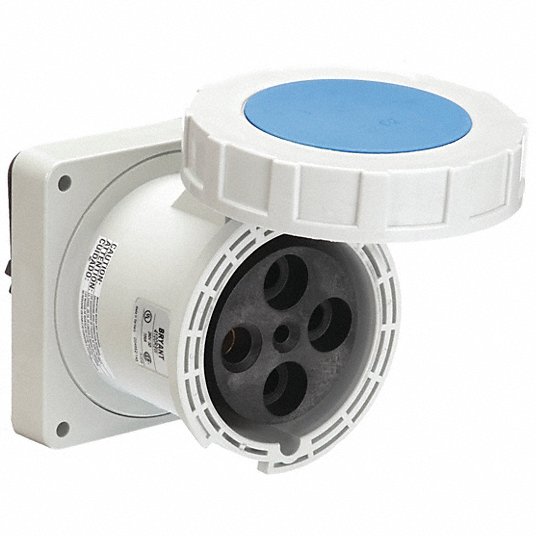

Bryant 4100R9W Female Receptacle 100A 3-Phase Delta 250V AC

Product Description

The BRYANT 4100R9W is an industrial grade female receptacle designed for high ampacity connections. Rated at 100A 3-Phase Delta 250V AC, this 3-Pole 4-Wire grounding receptacle features screw terminals and a watertight design. It is suitable for use in wet or damp environments where splashing is expected.

• Heavy Duty Products
• IEC Pin and Sleeve Devices
• Industrial Grade
• Watertight

Product Highlights

This receptacle is ideal for maintaining electrical continuity in locations vulnerable to moisture.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4100R9W
• Country of Origin: Germany

Technical Specifications

• Application: High Ampacity Connections
• Catalog Number: 4100R9W
• Color: Blue
• Environmental Conditions: Watertight
• EU RoHS Indicator: Yes
• Item Type: Single Flanged
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Watertight - IP67
• Type: Receptacle
• UPC: 781786250888
• Amperage Rating: 100 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 100 A
• Current Rating: 100 A
• Phase: Three Phase
• Voltage Rating: 250V AC
• Voltage Rating Description: 3 Phase 250V
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #3 AWG to #1/0 AWG
• Nema Rating: Non-NEMA
• Category: Plug/Receptacle
• Brand: BRYANT
• Manufacturer Part Number: BRY4100R9W
• Cap Type: Spring-Loaded
• Cap: Yes
• Connection Orientation: Straight
• Features: Neoprene Sealing Glands
• Flange Type: Flanged
• GFCI: No
• Grounding: Grounded
• Grounding Style: IEC
• Horsepower Rating: 10 hp
• Housing Color: Blue
• Housing Material: Composite
• IP Rating: IP67
• Maximum Wire Size: 1/0 AWG
• Minimum Wire Size: 3 AWG
• NEMA Enclosure Rating: Not Rated
• Number of Gangs: 1
• Reverse Service: No
• Shrouded: Yes
• Standards: IEC
• Switch Rated: No
• Wire Connection Type: Screw Terminals
• UNSPSC: 39121406
