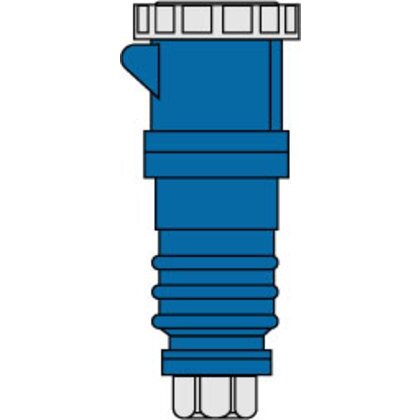

Bryant 4100C9W female connector body 100A

Product Description

The BRYANT 4100C9W is an industrial grade, female connector body. This IEC pin and sleeve device is rated for 100A 3-Phase Delta 250V AC and features a 3-pole, 4-wire grounding configuration with screw terminals. It is designed for high ampacity connections and is watertight.

• Industrial Grade
• Female Connector Body
• 100A 3-Phase Delta 250V AC

Product Highlights

Watertight connector with screw terminals for secure connections in demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4100C9W

Technical Specifications

• Catalog Number: 4100C9W
• Application: High Ampacity Connections
• Environmental Conditions: Watertight
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: Watertight
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Watertight - IP67
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
• Type: Connector
• UPC: 781786250802
• Amperage Rating: 100 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 100 A
• Current Rating: 100 A
• Voltage Rating: 3 Phase 250 V
• Voltage Rating Description: 3 Phase 250V
• Conductor Range: #3 AWG to #1/0 AWG
• Number of Conductors: 4-Wire Grounding
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Nema Rating: Non-NEMA
• Amperage: 100A
• Voltage: 3ph 250V AC
• Color: Blue
• Device Type: Connector
• Poles and Wires: 3 Pole, 4 Wire
• Pin and Sleeve Style: Watertight
• Moisture Protection: IP67
• Part #: 4100C9W
• Category: Plug/Receptacle
• Weight: 4.15 lbs
