Bryant 3768 Flanged Inlet 50A 250V DC/600V AC

Product Description

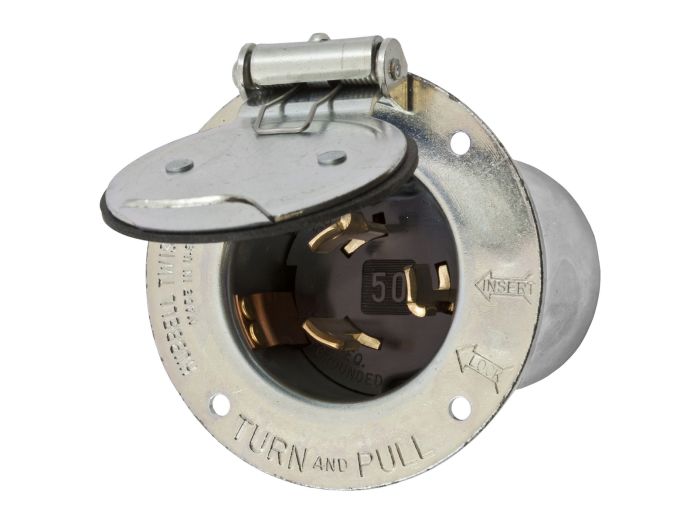

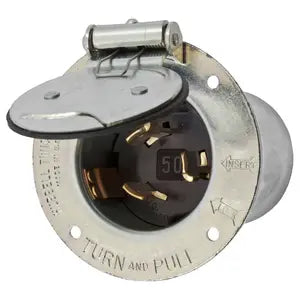

The BRYANT 3768 is an industrial flanged inlet with lift cover and gasket, designed for extra heavy-duty applications. Rated at 50A 250V DC/600V AC, this 3-pole, 4-wire grounding device features a non-NEMA configuration and screw terminals. It is suitable for indoor dry environments unless protected by additional means.

• Flanged Inlet with Lift Cover and Gasket
• 50A 250V DC/600V AC
• 3-Pole 4-Wire Grounding

Product Highlights

Industrial flanged inlet with robust construction, ideal for heavy-duty applications requiring secure and reliable power connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 3768
• Country of Origin: China

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 3768
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Insulation: Insulated Body
• Item Type: 50A Male Flanged Inlet-For Replacement Use
• Material: Metal
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Extra Heavy Duty
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact
• Type: Flanged Inlet
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current Amperage Description: 50 Amp
• Current Rating: 50 A
• Dielectric Strength: Withstands 3000V Minimum in
• Voltage Rating: 250 VDC/600 VAC
• Voltage Rating Description: 250 VDC/600 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Brand: Bryant
• Features: Locking Plug
• Resistance Properties: Impact Resistant
• Output Voltage: 600 V
• Country of Origin: China
• Manufacturer Part Number: 3768
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 600 VAC
• Body Type: Straight
• Connection Type: Flanged Inlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Comments: Steel Casing with Lift Cover
• Recommended Environment: Indoor
