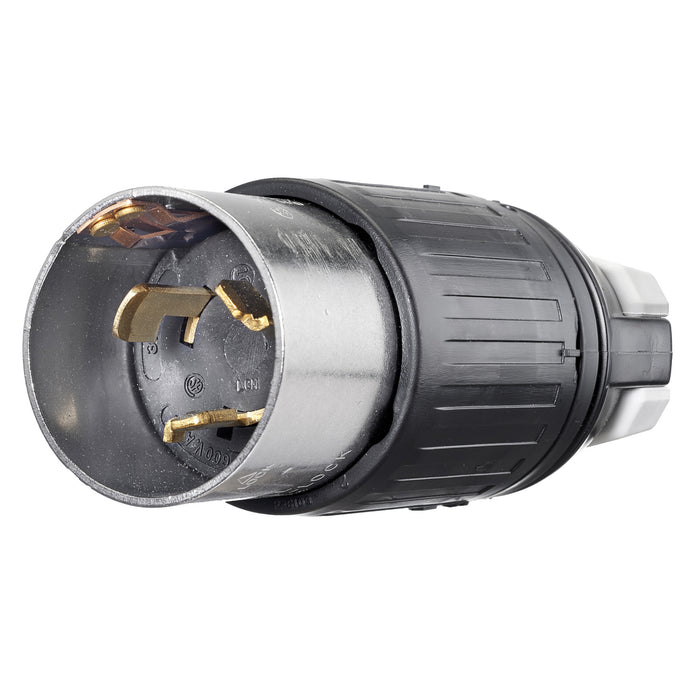

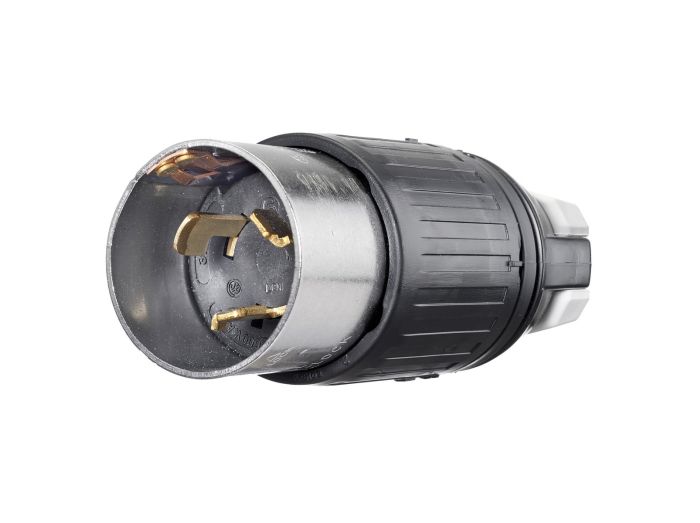

Bryant 3765 Locking Devices Industrial Male Plug 50A 250V DC/600V AC Non-NEMA

Product Description

The BRYANT 3765 is an industrial male plug designed for locking devices. Rated at 50A 250V DC/600V AC, this 3-pole, 4-wire grounding plug is non-NEMA and features screw terminals. It is suitable for extra heavy-duty industrial applications and provides cable-to-plug terminations for power connections that do not conform to standard NEMA configurations.

• Rated for 50A 250V DC/600V AC
• Features screw terminals for connectivity
• Suitable for extra heavy-duty industrial applications

Product Highlights

Industrial male plug, 50A, 250V DC/600V AC, non-NEMA, with screw terminals.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 3765
• Country of Origin: USA

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 3765
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 50A Male Plug-For Replacement Use
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Extra Heavy Duty
• Type: Plugs
• UPC: 781786652606
• Amperage Rating: 50 A
• Connectivity: Screw Terminals
• Current Amperage Description: 50 Amp
• Current Rating: 50 A
• Phase: Multi Phase
• Voltage Rating: 250 VDC/600 VAC
• Voltage Rating Description: 250 VDC/600 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Brand: BRYANT
• Manufacturer Part Number: 3765
• Compatible with Series: Twist Lock
• Connection Orientation: Straight
• For Maximum Cable Diameter: 1.25 in
• For Minimum Cable Diameter: 0.83 in
• Horsepower Rating: 7 hp
• Housing Color: Black
• Housing Material: Composite
• IP Rating: IP20
• Maximum Wire Size: 8 AWG
• Minimum Wire Size: 18 AWG
• NEMA Configuration: Non-NEMA
• Number of Blades: 4
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: Yes
• Standards: UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• Voltage: 600 VAC
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
