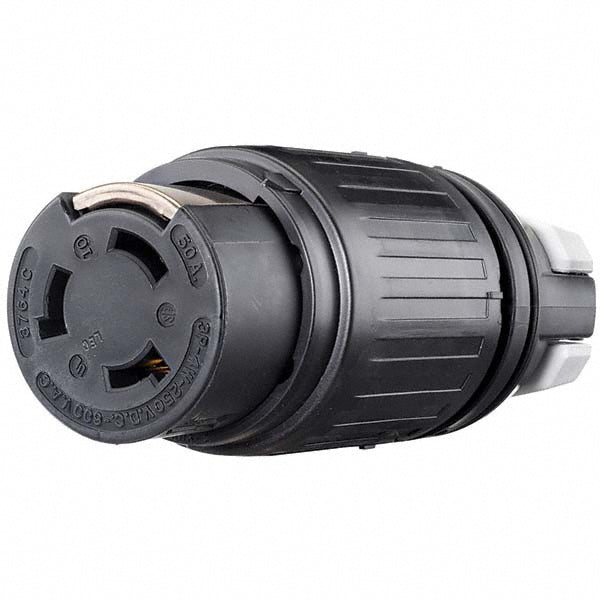

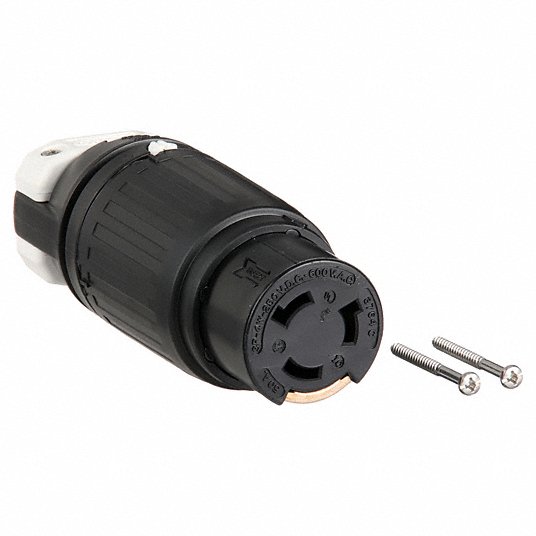

Bryant 3764 Female Connector Body 50A 250V DC/600V AC

Product Description

The BRYANT 3764 female connector body is designed for heavy-duty industrial applications. Rated at 50A 250V DC/600V AC, this 3-pole, 4-wire grounding connector features screw terminals and a non-NEMA configuration. It is suitable for indoor dry environments unless protected by additional means.

• Heavy Duty Industrial
• Insulated Body
• Extra Heavy Duty

Product Highlights

This connector offers a reliable solution for industrial power connections, ensuring durability and safety in demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 3764
• Country of Origin: United States

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 3764
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Insulation: Insulated Body
• Item Type: 50A Heavy Duty Connector-For Replacement Use
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Extra Heavy Duty
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786652552
• Dimensions: 6.50 in x 2.56 in x 2.56 in
• Height: 2.56 in
• Length: 6.5 in
• Width: 2.56 in
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current Amperage Description: 50 Amp
• Current Rating: 50 A
• Voltage Rating: 250 VDC/600 VAC
• Voltage Rating Description: 250 VDC/600 VAC
• Conductor Range: #6 AWG
• Number of Conductors: 4-Wire Grounding
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Carton Quantity: 10
• Manufacturer: Bryant Electric
• Item Weight: 1 pounds
• Product Dimensions: 6.5 x 2.56 x 2.56 inches
• Item model number: 3764
• Item Package Quantity: 1
• Included Components: Electrical Connector Body
• Batteries Required?: No
• ASIN: B07FN7SXN4
• MPN: 3764C
• Brand: Bryant
• Country of Origin: United States
• Cap Type: No Cap or Cover
• Connection Orientation: Straight
• For Location: Indoor
• For Maximum Cable Diameter: 1.25 in
• For Minimum Cable Diameter: 0.83 in
• Grounding: Grounded
• Horsepower Rating: 7 hp
• Housing Material: Composite
• IP Rating: IP20
• Maximum Operating Temperature: 75 °C
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Operating Temperature: -40 °F
• Minimum Wire Size: 18 AWG
• NEMA Configuration: Non-NEMA
• NEMA Enclosure Rating: Not Rated
• Phase: Single
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121421
