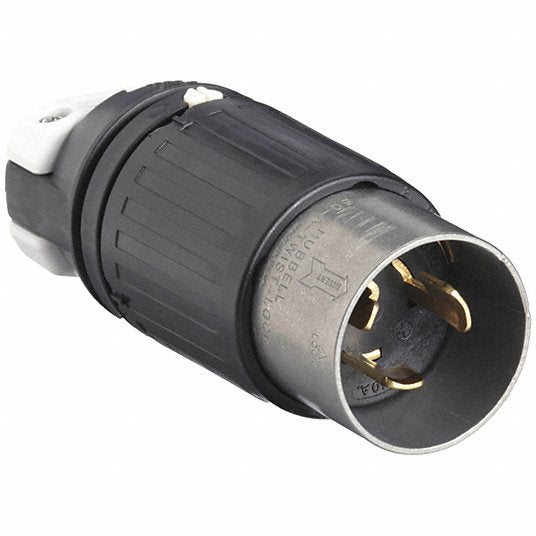

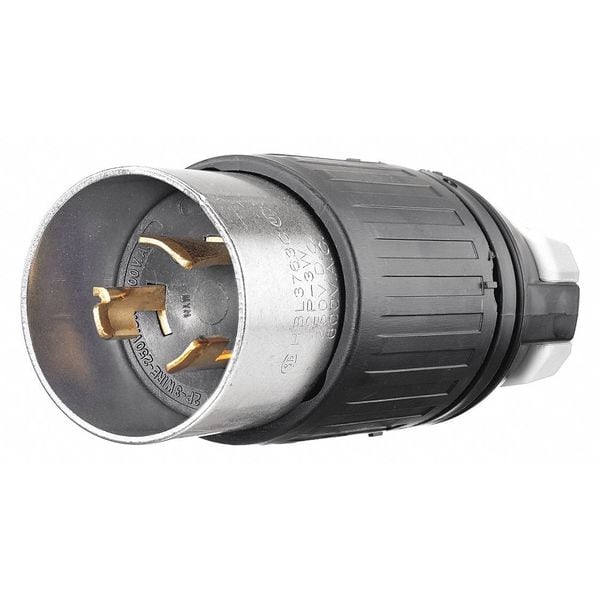

Bryant 3763 Locking Devices Industrial Male Plug 50A 250V DC 600V AC Non-NEMA

Product Description

The BRYANT 3763 is an industrial male plug designed for locking devices. Rated at 50A 250V DC/600V AC, this 2-pole, 3-wire grounding plug features a non-NEMA configuration and screw terminals. It is suitable for extra heavy-duty industrial applications and is constructed from composite material.

• Rated for 50A 250V DC/600V AC
• Features screw terminals for secure connections
• Constructed with chemical and impact-resistant composite material

Product Highlights

This Bryant locking plug is ideal for industrial and commercial applications requiring non-standard plug designs. It ensures a reliable power connection with its robust construction and secure screw terminal design.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 3763
• Country of Origin: US

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 3763
• EU RoHS Indicator: Yes
• Item Type: 50A Male Plug-For Replacement Use
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Extra Heavy Duty
• Type: Plugs
• UPC: 781786652507
• Amperage Rating: 50 A
• Connectivity: Screw Terminals
• Current Amperage Description: 50 Amp
• Current Rating: 50 A
• Phase: Multi Phase
• Voltage Rating: 250 VDC/600 VAC
• Voltage Rating Description: 250 VDC/600 VAC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Cord Type: All Listed Portables
• Brand: BRYANT
• Features: Locking Plug, Connection Orientation Straight, Current Rating 50 A, Housing Color Black, Housing Material Composite, NEMA Plug Configuration Non-NEMA, Number of Blades 3, Number of Poles 2, Phase Single, Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 250V DC/600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.25 in, For Minimum Cable Diameter 0.83 in, Grade Industrial, IP Rating IP20
• MPN: 3763
• Country of Origin: US
• Connection Orientation: Straight
• For Maximum Cable Diameter: 1.25 in
• For Minimum Cable Diameter: 0.83 in
• Horsepower Rating: 7 hp
• Housing Color: Black
• IP Rating: IP20
• Maximum Wire Size: 8 AWG
• Minimum Wire Size: 18 AWG
• NEMA Configuration: Non-NEMA
• Number of Blades: 3
• Overall Length: 5.38 in
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: Yes
• Standards: UL 498
• Wiring Style: Standard
• UNSPSC: 39121402
• Item: Locking Plug
• Number of Wires: 3
• Grounding: Grounded
• For Location: Indoor
• Amps: 50
• Cord Size: 0.830 in to 1.250 in
• Body Length: 5.38 in
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Grade: Industrial
• Market: Industrial
• Antimicrobial: No
