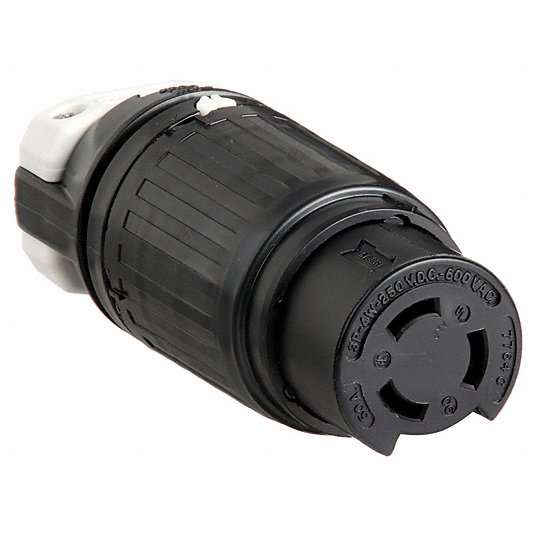

Bryant 3762 Locking Connector Non-NEMA 50 A 250V DC/600V AC 2 Poles

Product Description

The BRYANT 3762 locking connector attaches to power cable ends, offering socket interfaces for non-NEMA standard power connections. Commonly used in industrial and commercial settings with specific power needs. It is chemical and impact resistant and features screw terminals for wire connection.

• Current Rating: 50 A
• Voltage Rating: 250V DC/600V AC
• IP Rating: IP20

Product Highlights

The BRYANT 3762 locking connector is ideal for industrial and commercial applications requiring secure, non-standard power connections. It offers robust construction and reliable performance.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 3762
• Country of Origin: USA

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 3762
• Cap Type: No Cap or Cover
• Connection Orientation: Straight
• Current Rating: 50 A
• For Location: Indoor
• For Maximum Cable Diameter: 1.25 in
• For Minimum Cable Diameter: 0.83 in
• Grounding: Grounded
• Horsepower Rating: 7 hp
• Housing Color: Black; White
• Housing Material: Composite
• IP Rating: IP20
• Maximum Operating Temperature: 75 C
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Operating Temperature: -40 F
• Minimum Wire Size: 18 AWG
• NEMA Configuration: Non-NEMA
• NEMA Enclosure Rating: Not Rated
• Number of Poles: 2
• Number of Wires: 3
• Overall Length: 6.5 in
• Phase: Single
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: CSA Certified; UL Listed
• Voltage Rating: 250V DC/600V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121421
• Type: Wiring Devices > Locking Devices > Locking Connectors
• Grade: Industrial
• Market: Industrial
• Material: Nylon
• Country of Origin: US
• Style: Extra Heavy Duty
• Item: Locking Connector
• For Environment: Dry
• Material - Mounting Hardware: Cord Mounted
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 C with impact.
• Insulation: Insulated Body
• Amperage Rating: 50 A
• Application: Heavy Duty Industrial
• Conductor Range: #6 AWG
• Antimicrobial: No
• Power Indicator: No
• Cord Size: 0.830 in to 1.250 in
• Wire Size: #18 AWG to #8 AWG
