Bryant 3521 Locking Plug 4P5W20A120/208

Product Description

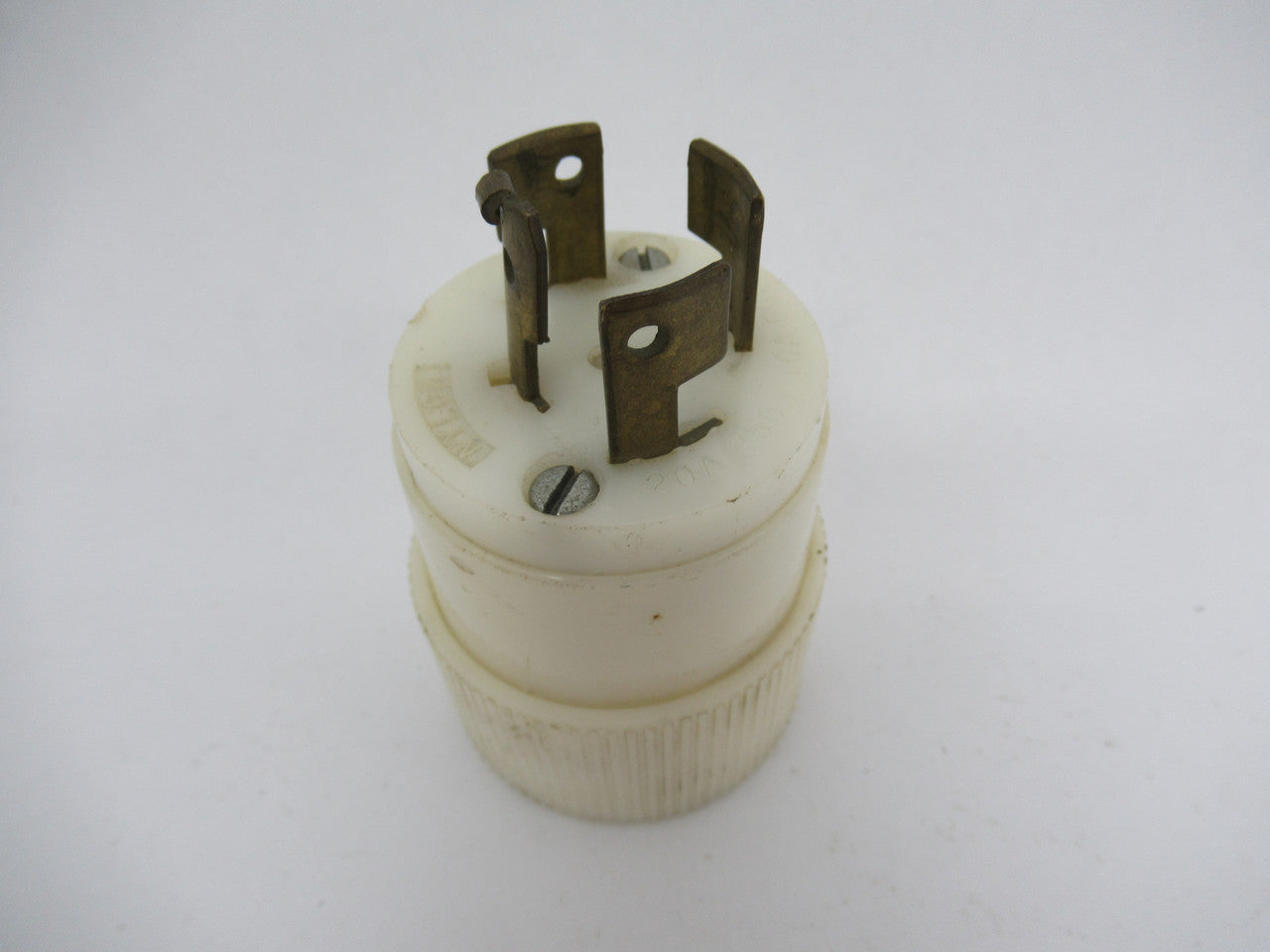

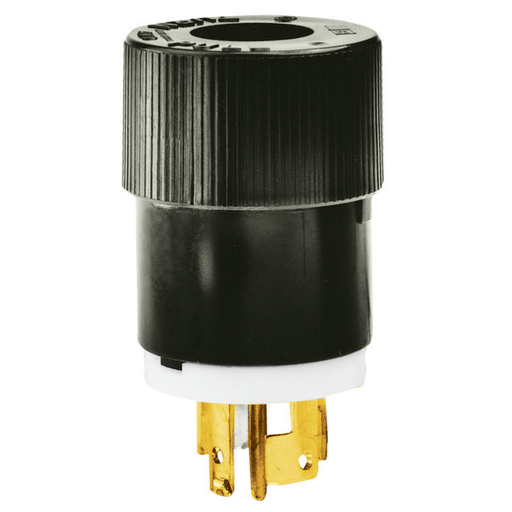

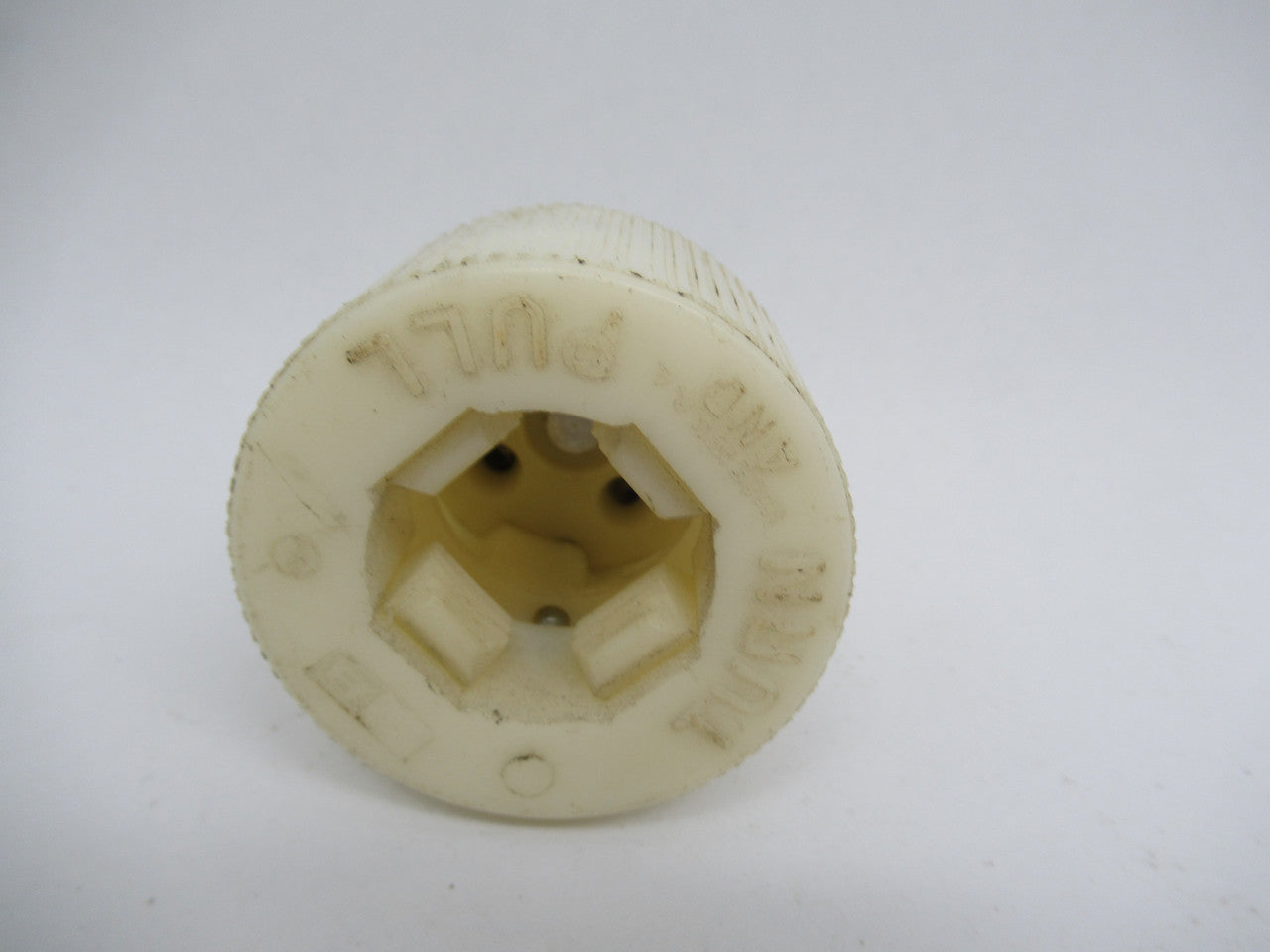

The BRYANT 3521 locking plug is a 4-pole, 5-wire grounding plug designed for industrial applications. Rated at 20A 3-Phase Wye 120/208V AC, this nylon plug features screw terminals and an internal cord clamp. It is suitable for extra heavy-duty industrial use and indoor dry environments.

• 20A 3-Phase Wye 120/208V AC
• 4-Pole 5-Wire Grounding
• Screw Terminals

Product Highlights

Industrial grade locking plug with nylon construction and screw terminals.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 3521
• Country of Origin: US

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 3521
• Color: Black, White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Nylon Plug-For Replacement Use
• Material: Composite, Nylon
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786620049
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 120/208 VAC
• Voltage Rating Description: 3 Phase Y 120/208 VAC
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: Non-NEMA
• Cord Type: All Listed Portables
• Cord Diameter: 0.625-1.150 in
