Bryant 3433 LKG CONN 4P4W 30A 120/208V 3 Y

Product Description

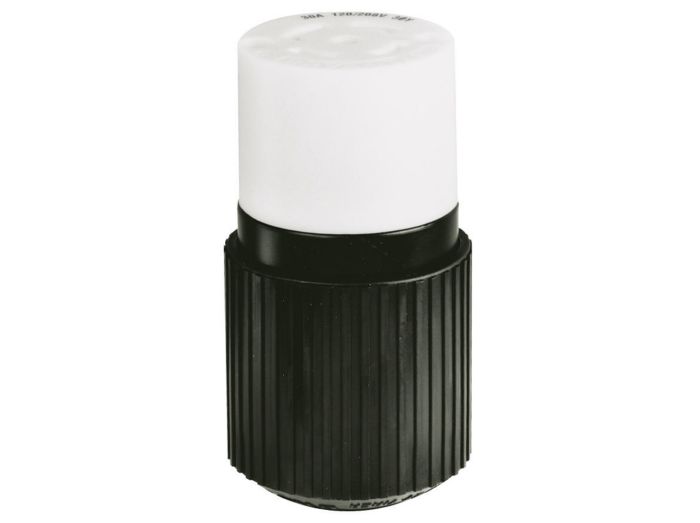

The BRYANT 3433 is a locking connector, industrial, female connector body, 30A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, with screw terminals. Face and body feature alignment keys for easy assembly. Amperage, voltage and NEMA configuration imprinted on face for easy identification. Impact/chemical resistant, toughened nylon construction.

• Face and body feature alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face for easy identification
• Impact/chemical resistant, toughened nylon construction

Product Highlights

This Bryant Electric locking connector is ideal for industrial applications requiring a robust and reliable connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 3433
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 3433
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 30 A
• Number of Poles: 4
• Number of Wires: 4
• Voltage: 120 VAC, 208 VAC
• Phase: 3Y
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: Non-NEMA
• Watertight: No
• Isolated Ground: No
• Application: Heavy Duty Industrial
• Catalog Number: 3433
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Triple Gripper Nylon Connector Non-NEMA
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
• Type: 3-Phase Female Heavy Duty Insulated Non-Grounding Standard
• UPC: 781786619944
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Voltage Rating: 120/208Y V AC, 120/208Y VAC
• Voltage Rating Description: 3 Phase Y 120/208 VAC
• Conductor Range: #12 AWG to #8 AWG
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: Non-NEMA
• Input Voltage: 120 V
• Maximum Input Current: 30 A
• Output Voltage: 208 V
• Terminal Type: Screw
• Cord Diameter: 0.625 to 1.15 in
• Grade: Industrial
• Manufacturer Name: Hubbell
• Country of Origin: US
• Approvals: CSA, UL
• Comments: Non-Grounding
