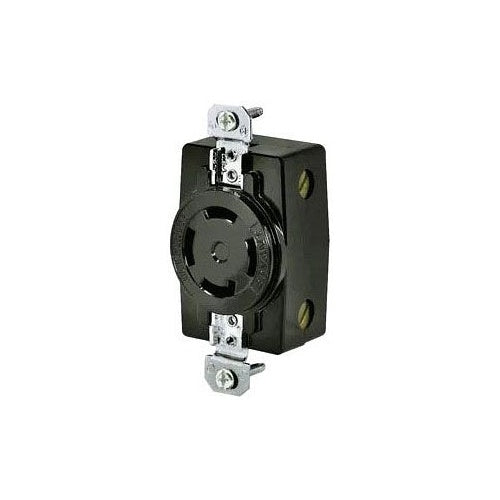

Bryant 3430BRY Locking Devices, Industrial, Flush Receptacle, 30A 3-Phase Wye 120/208V AC

HUBBELL
Brand: HUBBELL
SKU: 3430BRY
Availability: In Stock

Ships same day if ordered by 12 pm
$109.94
$109.94
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BRYANT 3430BRY is an industrial flush receptacle designed for heavy-duty applications. This locking device supports 30A 3-Phase Wye 120/208V AC power, and features a 4-Pole 4-Wire non-grounding configuration with screw terminals. Ideal for industrial settings requiring a robust and reliable power connection.

  • Flush Receptacle
  • 30A 3-Phase Wye 120/208V AC
  • 4-Pole 4-Wire Non-Grounding

Product Highlights

Durable composite material, screw terminal connectivity, and suitable for indoor dry environments.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: 3430BRY
  • Country of Origin: US
Technical Specifications
Application
Extra Heavy Duty Industrial Specification Grade
Catalog Number
3430BRY
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
No
Item Type
30A Single Nylon Receptacle
Material
Composite
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Bryant
Style
Single Receptacle
Type
Receptacle
UPC
781786619906
Amperage Rating
30 A
Connectivity
Terminal Screws
Current Amperage Description
30 Amp
Current Rating
30 A
Phase
Three Phase
Voltage Rating
120/208Y V AC
Voltage Rating Description
3 Phase Y 120/208V AC
Number Of Poles
4-Pole
Number Of Wires
4-Wire
Wire Size
#14 AWG to #8 AWG
Nema Rating
Non-NEMA
Cord Diameter
0.625 to 1.15 in
Country of Origin
US
Grade
Industrial/Specification
Manufacturer Name
Hubbell
Temperature Rating
-40 to 60 deg C
Terminal Type
Screw
Dielectric Voltage
Withstands 3500V per UL498
Maximum working Voltage
600V AC or 250V DC
Current Interupting
Certified for current interrupting at full rated current
Temperature rise
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL498
Terminal Identification
(X, Y Z Brass Hot) (G, Green, Grounding) (W, Silver, Neutral)
Flammability
UL 94 V2 Minimum
Operating Temperatures
-40 deg C to 85 deg C (continuous w/o impact)
UL Standards
UL Listed to Standard 498 (Attachment Plug and Receptacles)
UL Listing File
Ul Listed File #E2258- Guide #RTRT
Federal Specifications
Federal Specifications WC596 (where applicable)
Complies With
Complies with NEMA Standards WD-1, WD-6 and UL 498
Overseas Approval
NOM, CE
CSA Standard
Certified to CSA Standard C222 No42M1984 (General Use Receptacles) and C222 No 1822M1987 (Industrial Locking Type, Special Use Attachment Plugs, Receptacles and Connectors) where applicable
CSA Certification File
CSA Certified File #LR16215- Guide #365-E-1
AMPERAGE
30A
VOLTAGE
3ph 120 / 208V AC
POLES AND WIRES
4 Pole, 4 Wire
DEVICE TYPE
Flush Receptacle
BRAND
Bryant
TERMINAL ACCOMODATIONS-MAXIMUM
#8 Solid/Stranded
TERMINAL ACCOMODATIONS-MINIMUM
#14 Solid/Stranded
NEMA
--
Part #
3430BRY
Category
Plug/Receptacle
MPN
3430
GTIN
0781786619906
Plate Design
Single Outlet
Current Type
AC
Number of Outlets
1
Outlet Configuration
Single
Plug Type
A
Outlet Style
Round
Mounting Style
Flush, Wall
Number of Phases
1
Resistance Properties
Impact Resistant
Full Technical Description
Single Locking Type; Reinforced Thermoplastic Polyester (Base), Nylon (Face) Material; Black Color; Non-NEMA Locking Configuration; 4 Wire(S); UL 94/498, CSA C22.2, CE Approval; 120/208 VAC Star 3-Phase Voltage Rating; Flush Mounting; 30 Ampere Current Rating; Non-Grounding; 4 Pole(S); Corrosion Resistant; Back, Side Wiring; 1.56 Inch Face Outer Diameter; Operating Temperature -40 to 85 Deg C
Manufacturer
Bryant Electric, Inc.
Manufacturer Brand
Bryant Electric, Inc.
Sub Category
Locking Device Receptacle
Unspsc
39121406
UPC 12 Digit
781786619906
