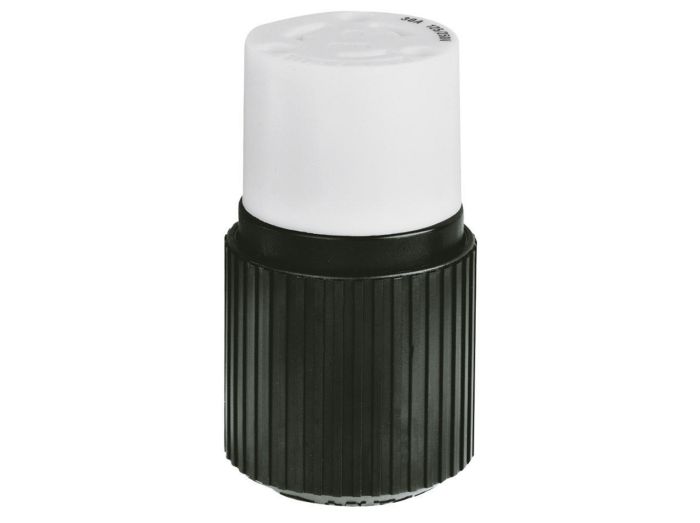

Bryant 3333 Female Connector Body 30A 125/250V Non-NEMA

Product Description

The BRYANT 3333 is an industrial female connector body designed for heavy-duty applications. Rated at 30A and 125/250V AC, this 3-pole, 3-wire non-grounding connector features screw terminals and a non-NEMA configuration. Its toughened nylon construction is impact and chemical resistant. Ideal for industrial use, it ensures secure and reliable connections.

• Face and body feature alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face for easy identification
• Impact/chemical resistant, toughened nylon construction

Product Highlights

Industrial female connector body, 30A 125/250V AC, 3-Pole 3-Wire Non-Grounding, Non-NEMA, Screw Terminal.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 3333
• Country of Origin: United States

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 3333
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Triple Gripper Nylon Connector Non-NEMA
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
• Type: Connector Body
• UPC: 781786619722
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC
• Conductor Range: #12 AWG to #8 AWG
• Number of Conductors: 4-Wire Non-Grounding
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: Non-NEMA
• Manufacturer Part Number: 3333
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC, 250 VAC
• Body Type: Straight
• Connection Type: Connector
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Comments: Non-Grounding
• Brand: BRYANT
• MPN: 3333
• Country of Origin: United States
