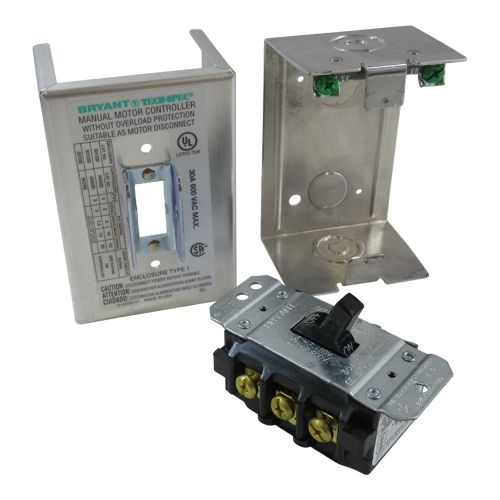

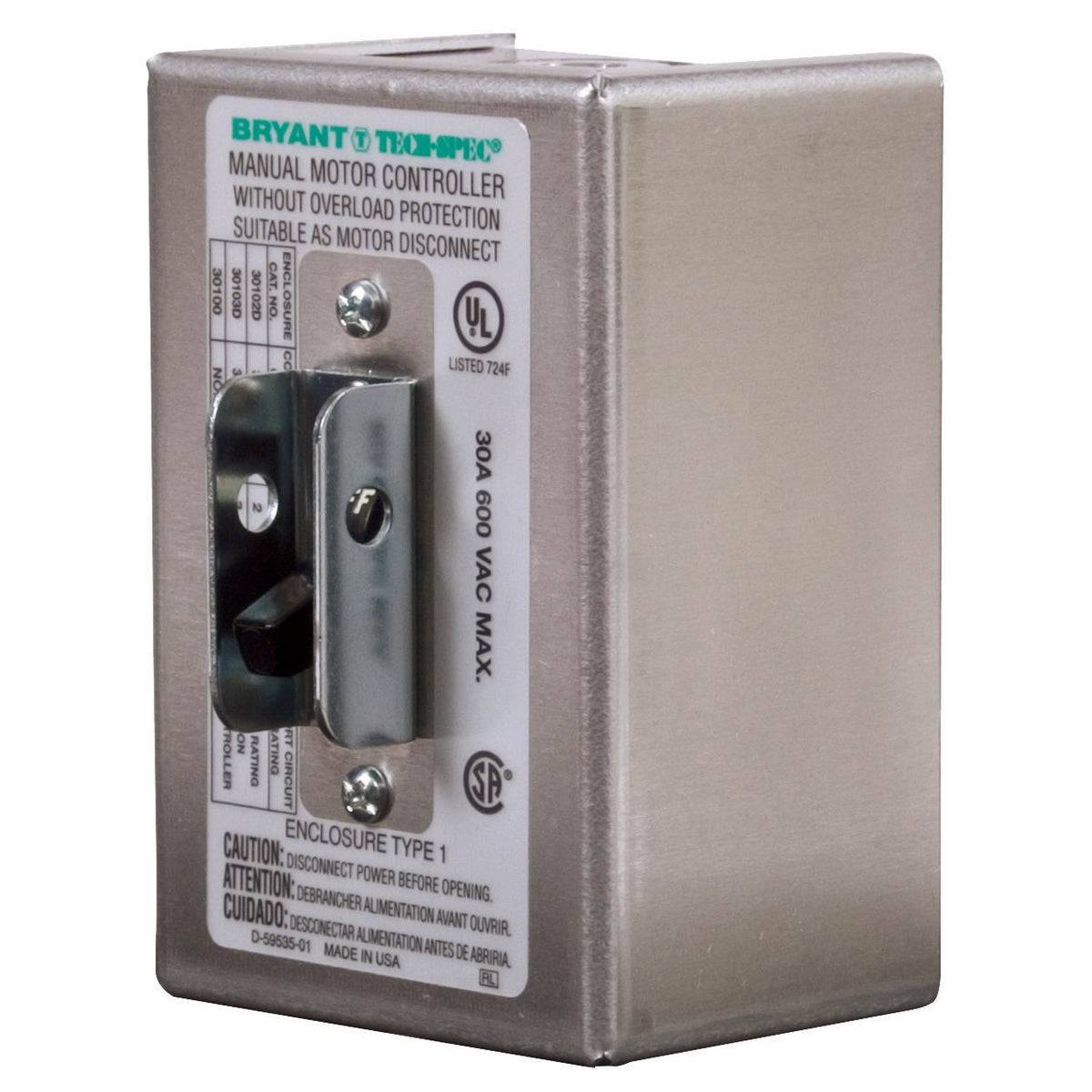

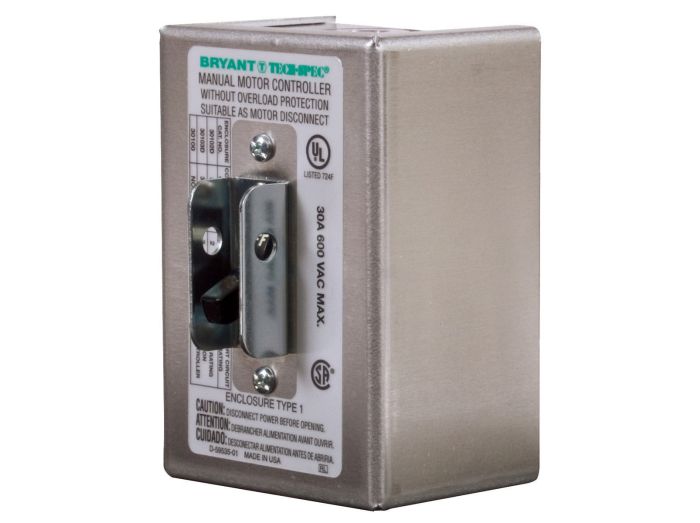

Bryant 30103D Industrial Grade Toggle Switches Motor Disconnects Three Pole 30A 600V AC With NEMA 1 Enclosure

Product Description

The BRYANT 30103D industrial grade toggle switches are motor disconnects with three poles, rated for 30A and 600V AC, and designed for side wiring. It features an aluminum construction with a NEMA 1 enclosure. Suitable for indoor use, this switch is designed for standard toggle applications.

• Toggle
• Motor Disconnects
• Three Pole
• 30A 600V AC
• Side Wired Only

Product Highlights

Industrial grade toggle switch with motor disconnect, three-pole, 30A 600V AC, and NEMA 1 enclosure.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 30103D
• Country of Origin: CN

Technical Specifications

• Application: Standard Toggle
• Catalog Number: 30103D
• Enclosure Type: NEMA 1
• Environmental Conditions: Indoor Only
• EU RoHS Indicator: No
• Item Type: Enclosed Switch
• Load Capacity: Inductive
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Operating Cycles: 10,000 Cycles Minimum
• Operating Temperature: Minimum Continuous -40 Deg C without Impact
• Series: Non-Fused
• Style: Standard Duty
• Type: Disconnect Switches
• UPC: 781786631564
• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 600V AC
• Number Of Poles: 3 Pole
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: 30103D
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Disconnect Switches
• Poles: 3
• NEMA Rating: NEMA 1
• AC Voltage: 600 VAC
• Approvals: CSA, UL
• Brand: Bryant
• Maximum Amperage: 30 A
• MPN: 30103D
• Item: Controller
