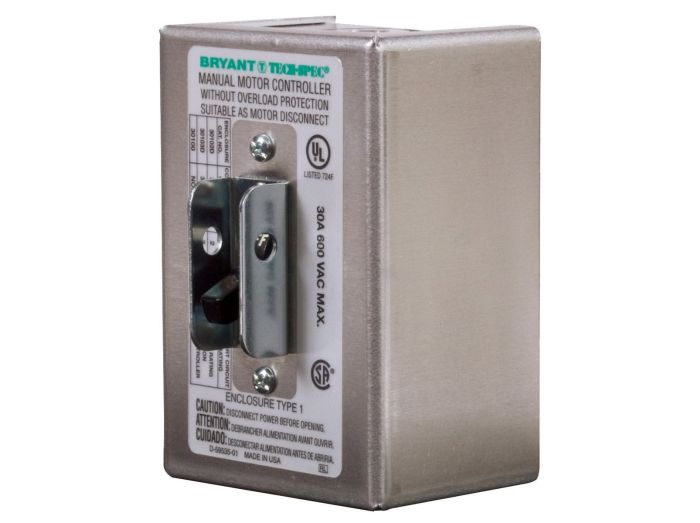

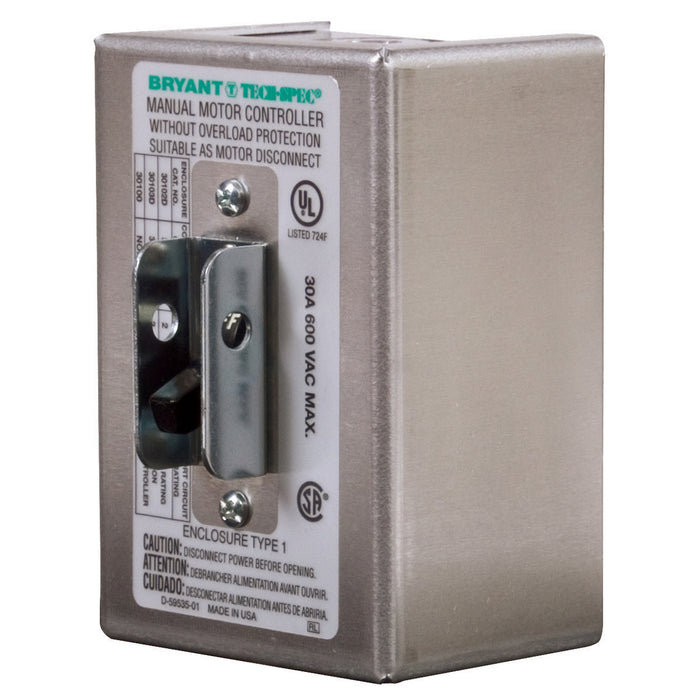

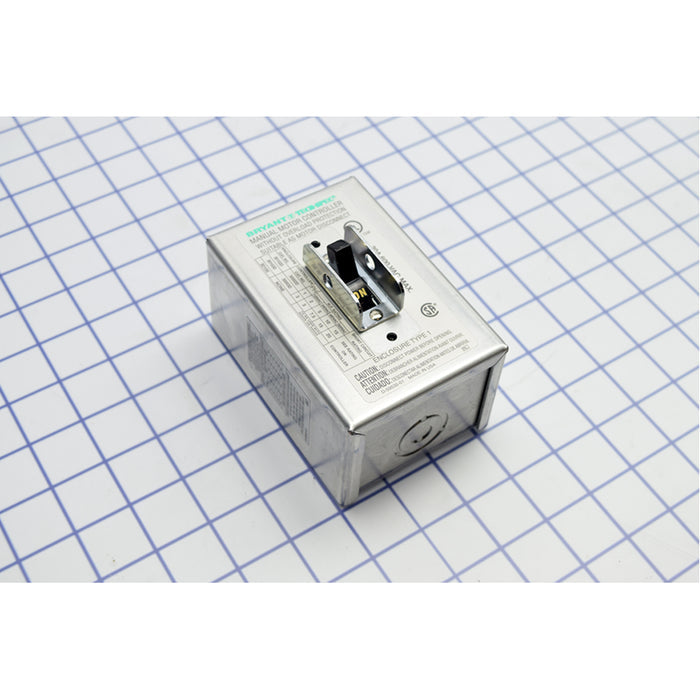

Bryant 30102D Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Double Pole, 30A 600V AC With NEMA 1 Enclosure

Product Description

The BRYANT 30102D switches and lighting controls are industrial grade toggle switches, motor disconnects with a double pole, 30A 600V AC, and a NEMA 1 enclosure. Designed for indoor use, this standard-sized product is side wired only. Suitable for inductive loads, it has an operating temperature of -40 degrees C without impact.

• Toggle
• Motor Disconnects
• Double Pole
• 30A 600V AC
• Side Wired Only

Product Highlights

Industrial grade toggle switch for motor disconnects, featuring a double pole, 30A 600V AC, and NEMA 1 enclosure.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 30102D

Technical Specifications

• Application: Standard Toggle
• Catalog Number: 30102D
• Enclosure Type: NEMA 1
• Environmental Conditions: Indoor Only
• EU RoHS Indicator: No
• Item Type: Enclosed Switch
• Load Capacity: Inductive
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Operating Cycles: 10,000 Cycles Minimum
• Operating Temperature: Minimum Continuous -40 Deg C without Impact
• Series: Non-Fused
• Style: Standard Duty
• Type: Disconnect Switches
• UPC: 781786631557
• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 600V AC
• Wattage: 18000
• Number Of Poles: 2 Pole
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• Operator Type: Toggle
• Model: Manual Motor Starter
• MPN: Does Not Apply
• Modified Item: No
• SKU: 30102D
• Manufacturer Part Number: 30102D
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Disconnect Switches
• NEMA Rating: NEMA 1
• AC Voltage: 600 VAC
• Approvals: CSA, UL
• Switch Type: Motor Starting
• Amps: 30A
• Voltage: 600V
• Operation: DPST
• Enclosure: NEMA 1
• HP/120V: 2
• HP/240V: 5 HP
• HP/480V: 10 HP
• HP/600V: 15 HP
