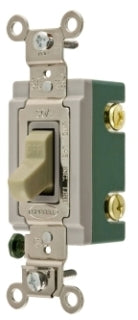

Bryant 3002I AC Toggle Switch 30A 120/277V

Product Description

The Bryant 3002I AC Toggle Switch operates at 30 amps and supports 120 to 277 volts. This switch is designed for industrial and specification grade applications. It features a dual grounding option and back wiring capabilities, making installation versatile and straightforward.

• High-impact and chemical-resistant nylon toggle.
• Corrosion-resistant brass and nickel-plated yoke.
• Dual grounding options with a grounding terminal or stainless steel self-grounding clip.

Product Highlights

This toggle switch is suitable for industrial environments and is rated for 2 HP at 120/240/277 VAC.

Product Information

Standard Information

• Manufacturer: Bryant
• Application: Industrial, Specification Grade

Technical Specifications

• Material: Thermoset (Base), Nylon (Toggle)
• Operation Type: 2-Pole
• Power Rating: 2 HP at 120/240/277 VAC
• Size: 1.3 inches x 1.11 inches x 4.06 inches
• Color: Ivory
• Approval: UL, CSA, Fed Spec WS896E
• Wiring: Back, Side
