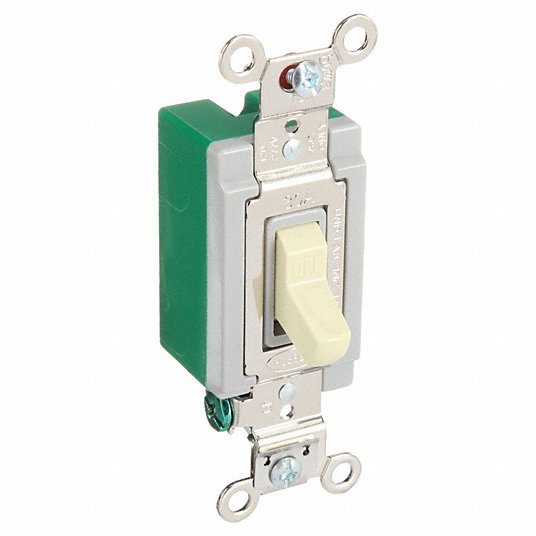

Bryant 3001I ac Toggle Switch 30A 120/277V

Product Description

The BRYANT 3001I is an AC toggle switch designed for industrial and specification grade applications. This single pole switch is rated for 30A at 120/277V AC and features back and side wiring options. It provides power control for electric devices and equipment such as ceiling fans, lights, outlets, and appliances.

• High-Impact and Chemical Resistant Nylon Toggle
• Corrosion-Resistant Brass and Nickel-Plated Yoke
• Dual-Grounding Options, Grounding Terminal or Stainless Steel Self-Grounding Clip

Product Highlights

The BRYANT 3001I toggle switch is ideal for industrial applications requiring a robust and reliable single pole switch.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 3001I
• Country of Origin: CN

Technical Specifications

• Application: Industrial, Specification Grade
• Approval: UL, CSA, Fed Spec WS896E
• Material: Thermoset (Base), Nylon (Toggle)
• Operation Type: 1-Pole
• Power Rating: 2 HP at 120/240/277 VAC
• Product UPC: 781786619234
• Type: Toggle, Extra Heavy Duty
• Wiring: Back, Side
• Brand: BRYANT
• Features: Wall Switch, Color Ivory, Current Rating 30 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Standards UL/CSA/NOM, Switch Style Toggle, Wire Connection Type Screw Terminals, Market Industrial, Overall Height 1.7 in
• Model: 3001I
• MPN: 3001I
• Country of Origin: CN
• California Prop 65 Warning: N
• Item Height: 1.600
• Item Length: 4.200
• Item Width: 1.800
• Style: Single Pole
• Current Rating: 30 A
• Horsepower Rating: 2 hp
• Illuminated: No
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Pilot Light: No
• Standards: UL/CSA/NOM
• Switch Function: Maintained
• Switch Style: Toggle
• Switch Type: Single Pole
• Voltage Rating: 120/277V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
