Bryant 30002D Switches and Lighting Controls 30A 600V AC

Product Description

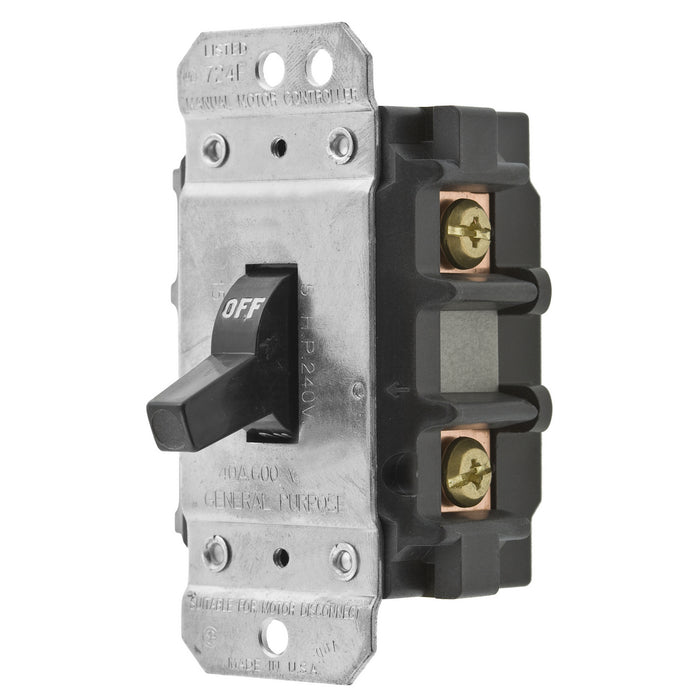

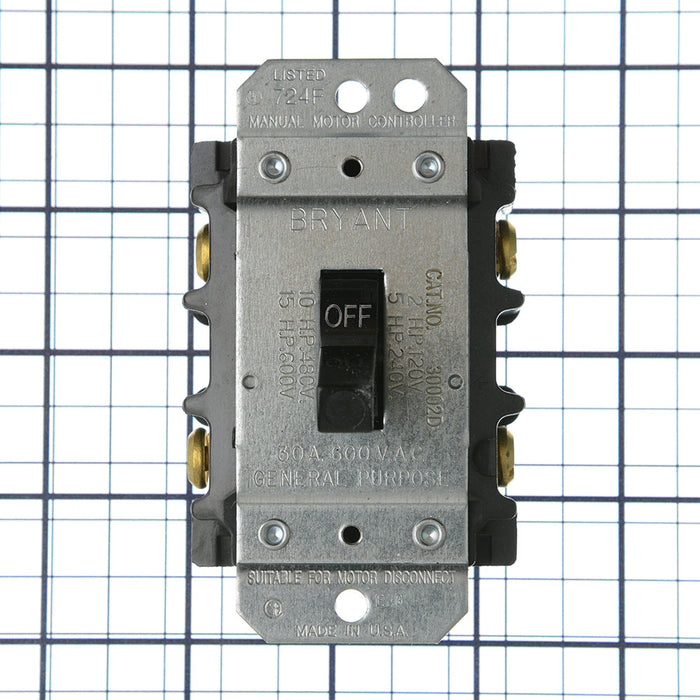

The BRYANT 30002D is an industrial grade toggle switch designed for motor disconnects. This double pole switch is rated for 30A and 600V AC, and features back and side wiring. It is suitable for indoor dry environments unless protected by additional means.

• Double Pole
• 30A 600V AC
• Back and Side Wired

Product Highlights

Industrial grade toggle switch for motor disconnects with back and side wiring.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 30002D
• Country of Origin: Puerto Rico

Technical Specifications

• Catalog Number: 30002D
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Open Switch
• Load Capacity: Inductive
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Operating Cycles: 10,000 Cycles Minimum
• Operating Temperature: Minimum Continuous -40 Deg C without Impact
• Series: Standard Toggle
• Style: Motor Controller/Disconnect
• Type: Back & Side Wire
• UPC: 781786631502
• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 600V AC
• Wattage: 18000
• Number Of Poles: 2 Pole
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: 30002D
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Manual Motor Controllers
• Description: Switches and Lighting Controls, Industrial Grade, Toggle Switches, MotorDisconnects, Double Pole, 30A 600V AC, Back and Side Wired, Black
• Approvals: CSA, UL
• Comments: Standard Toggle, Back and Side Wired
• Product Name: Bryant 30A 600V 2-Pole Disconnect Switch (30002D)
• Brand: Bryant
• SKU: 30002D
• Mfr. Part Number: 30002D
• UPC Code: #781786631502
• MPN: 30002D
• GTIN: 0781786631502
• Current Type: AC
• Fuse Type: Switch
• Number in Pack: 1
• Protection Properties: Overload Protection
• Mounting Style: Screw, Panel
