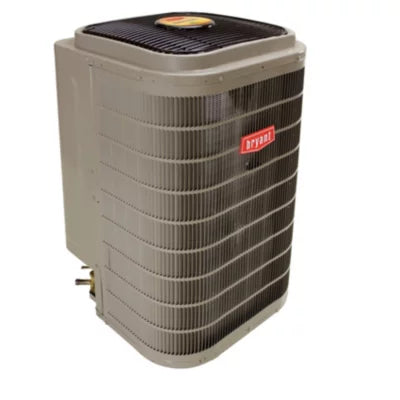

Bryant 288bnv060000 Heat Pump Condensing Unit 5 Ton 18 Seer

Product Description

The BRYANT 288bnv060000 is a 5-ton residential variable speed heat pump condensing unit rated at 18 SEER cooling efficiency and up to 11 HSPF heating efficiency. It uses an inverter-driven rotary compressor paired with an ECM condenser fan motor to deliver variable capacity operation across multiple stages, allowing precise load matching across a wide range of conditions. Refrigerant is R-410A, and the metering device is a factory-installed TXV. The unit is Energy Star rated and UL Listed, making it suitable for residential installations where high-efficiency heat pump performance and multi-stage dehumidification are priorities. Licensed HVAC technicians handle installation and commissioning.

This condensing unit is designed for residential split-system heat pump applications. The variable speed inverter capacity control supports up to 5 stages of operation, which benefits zoning systems and advanced dehumidification control. It is engineered to work with a wide variety of compatible indoor units and controls within the Bryant Evolution system family. The compact cabinet footprint — 31.1875 inches long by 31.1875 inches wide by 42.3125 inches tall — simplifies placement in space-constrained installations. Single-phase, 208-230 VAC power supply is required.

Key Features

• 18 SEER cooling efficiency and HSPF range of 8.2-11 for high-efficiency operation
• Inverter-driven variable speed compressor with up to 5 stages of capacity control
• ECM condenser fan motor at 900 RPM with vertical discharge and 4,500 CFM airflow
• TXV metering device for precise refrigerant management across varying load conditions
• EER range of 9-12.5 and COP of 2.94 for strong part-load and full-load performance
• Energy Star rated and UL Listed; manufactured in the USA
• Sound level rated at 73 dBA; suitable for residential side-yard and backyard placement

Compatibility

The 288bnv060000 is designed for use within the Bryant Evolution system platform and is compatible with a wide variety of Bryant Evolution indoor units and controls. Maximum piping length is 100 feet. Liquid line connection is 3/8 inch OD and suction line connection is 1-1/8 inch OD, both sweat or braze type.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Disconnect all electrical power and follow lockout/tagout procedures before making any electrical or refrigerant connections. R-410A systems require EPA Section 608 certified technicians for refrigerant handling. Verify that the indoor unit, air handler, and controls are confirmed compatible with the Evolution platform before installation.

Technical Specifications

• Tonnage: 5 ton
• Cooling Rated Capacity: 60,000 BTU/h
• Heating Capacity: 44,000 BTU/h
• SEER: 18
• HSPF: 8.2-11
• HSPF2: 9
• EER: 9-12.5
• COP: 2.94
• Refrigerant: R-410A
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• Voltage: 208-230 VAC
• Phase: Single
• Cycle/Hertz: 60 Hz
• Rated Load Amps (RLA): 31.3 amps
• Full Load Amps: 1.4 amps
• Maximum Overcurrent Protection (MOCP): 60 amps
• Compressor Type: Rotary
• Condenser Motor Type: ECM (Electronically Commutated Motor)
• Condenser Motor HP: 1/3 HP
• Condenser Motor RPM: 900
• Condenser Fan CFM: 4,500
• Condenser Fan Discharge: Vertical
• Condenser Fan Blade Diameter: 24 inches
• Condenser Coil Fins per Inch: 20
• Liquid Line Size (OD): 3/8 inch
• Liquid Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 1-1/8 inch
• Suction Line Fitting Type: Sweat or Braze
• Maximum Piping Length: 100 feet
• Sound Level: 73 dBA
• Length: 31.1875 inches
• Width: 31.1875 inches
• Height: 42.3125 inches
• Weight: 245 pounds
• Color: Gray
• Approvals: UL Listed, UL Recognized
• Energy Star Rated: Yes
• Country of Origin: USA

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 288bnv060000
