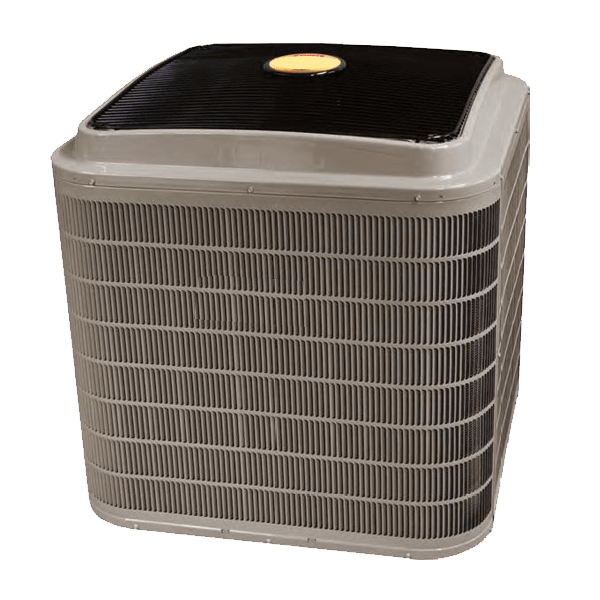

Bryant 288BNV036000 Heat Pump Condenser 3 Ton 18 SEER

Product Description

The Bryant 288BNV Heat Pump offers high-efficiency variable speed performance in a remarkably small cabinet. Providing up to 11 HSPF heating efficiency and up to 18 SEER cooling efficiency. The variable speed inverter capacity control delivers up to 5 stages of operation for exceptional load matching. Designed for flexible system matching and compatibility with a wide variety of indoor units and controls.

• Up to 18 SEER /12.5 EER / 11 HSPF
• Sound level as low as 55 dBA in low speed, Silencer System II
• Variable speed compressor operates at 5 stages with capacity range from as wide as 25-100%

Product Highlights

High-efficiency variable speed heat pump with up to 18 SEER cooling and 11 HSPF heating efficiency. Features a variable speed compressor with 5 stages of operation and a compact cabinet design.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 288BNV036000

Technical Specifications

• Model Number (s): 288BNV036000A
• Brand: Bryant
• Type: Heat Pump
• Ton: 3.0 Ton
• SEER: 18
• Cooling Btu: 34,200
• Cooling Stage(s): 5
• Compressor Stage: Inverter
• Electrical Phase(s): 1-Phase
• Decibel Level (dB): 71
• Refrigerant Type: R-410A
• Suction Valve Size (Inches): 3/4
• Liquid Valve Size (Inches): 3/8
• Heating Btu: 34,200
• Amp(s): 40
• Voltage: 208/230V
• Min. Operating Temp. (Degrees Farenheit): 10
• Maximum CFM: 3,800
• Heating Stage(s): 5
• Height (Inches): 38 1/2
• Width (Inches): 23 1/8
• Depth (Inches): 23 1/8
• Category: Heat Pumps
• HSPF: 10.50
