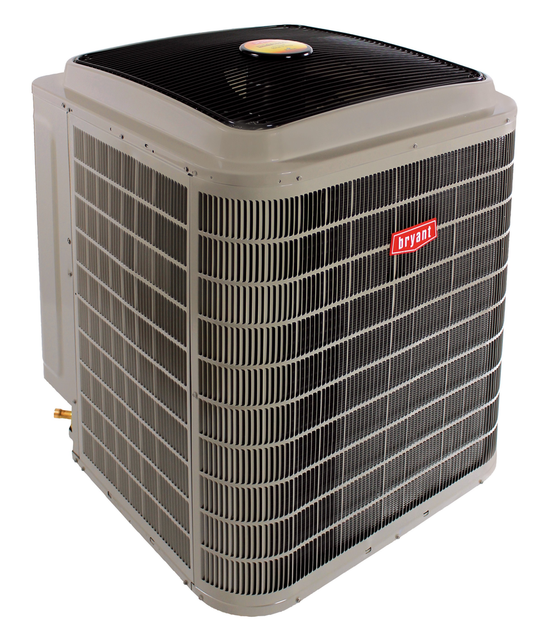

Bryant 280anv024000 Variable Speed Heat Pump 2 Ton 20 Seer

Product Description

The BRYANT 280anv024000 is a 2-ton variable-speed outdoor heat pump designed for split-system residential HVAC installations. Rated at up to 20.5 SEER and a maximum COP of 4.7, it delivers both cooling and heating through a communicating inverter-driven scroll compressor. The unit operates on single-phase 208/230-volt power and uses R-410A refrigerant. An ECM condenser fan motor with variable-speed control reduces energy draw during part-load conditions. TXV metering handles the cooling cycle and an EXV manages the heating cycle. Sound-blanket construction keeps max sound output at 71 decibels. Licensed HVAC technicians perform installation and commissioning.

This heat pump suits residential split-system installations where high-efficiency, variable-speed performance is required. Its communicating control interface allows integration with compatible Bryant system controls and thermostats. The unit is configured for vertical mounting and accepts sweat connections on both the 3/8-inch liquid line and the 7/8-inch suction line. Nominal airflow is rated at 2,700 CFM. Heating performance extends down to a minimum ambient temperature of 0 to 29 degrees F, making it suitable for cold-climate residential applications. Louver-style coil guards protect the outdoor coil fins, which are spaced at 20 fins per inch.

Key Features

• Variable-speed inverter-driven scroll compressor for part-load efficiency
• Up to 20.5 SEER cooling efficiency rating
• Maximum COP of 4.7 for heating performance
• ECM condenser fan motor rated at 1/3 HP and 256 RPM nominal
• Communicating system control capability for integrated Bryant system operation
• Sound blanket included; maximum sound level 71 decibels
• TXV cooling metering device and EXV heating metering device

Compatibility

Designed for use in communicating split-system heat pump configurations requiring a 2-ton, R-410A outdoor unit with variable-speed operation and 208/230-volt single-phase power supply.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power before servicing. Refrigerant handling requires EPA Section 608 certification. Liquid and suction line connections are sweat-type; follow accepted brazing practices and leak-test the system before charging. Verify that the indoor air handler and thermostat are compatible with the communicating control interface before startup.

Technical Specifications

• Nominal Cooling Capacity: 24,000 BTU/h (2 Tons)
• Maximum Cooling Capacity: 25,200 BTU/h
• Maximum Heating Capacity: 23,600 BTU/h
• Minimum Heating Capacity: 23,800 BTU/h
• Maximum SEER: 20.5
• Minimum SEER: 18.5
• Maximum COP: 4.7
• Refrigerant: R-410A
• Nominal CFM: 2,700 CFM
• Voltage: 208/230 volts, Single Phase, 60 Hz
• Minimum Circuit Ampacity (MCA): 23.5 amps
• Maximum Circuit Breaker: 30 amps
• Compressor RLA: 16.5 amps
• LRA: 20-24 amps
• Outdoor Fan Motor FLA: 2.8 amps
• Condenser Motor Type: ECM
• Condenser Motor HP: 1/3 HP
• Condenser Motor Nominal RPM: 256 RPM
• Fan Diameter: 26 inches
• Compressor Type: Scroll, Inverter-Driven
• Metering Device (Cooling): TXV
• Metering Device (Heating): EXV
• Liquid Line Size: 3/8 inches (Sweat)
• Suction Line Size: 7/8 inches (Sweat)
• Minimum Heating Ambient Temperature: 0-29 degrees F
• Maximum Sound Level: 71 dB
• Coil Guard Type: Louver
• Outdoor Fins Per Inch: 20 FPI
• Configuration: Vertical
• High Pressure Switch: Included
• Accumulator: Included
• Sound Blanket: Included
• Unit Length: 37.00 inches
• Unit Width: 37.12 inches
• Unit Height: 50.00 inches
• Unit Weight: 365.5 pounds

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 280anv024000
