Bryant 26516 female connector body 60A 600V AC 4-pole 5-wire grounding

Product Description

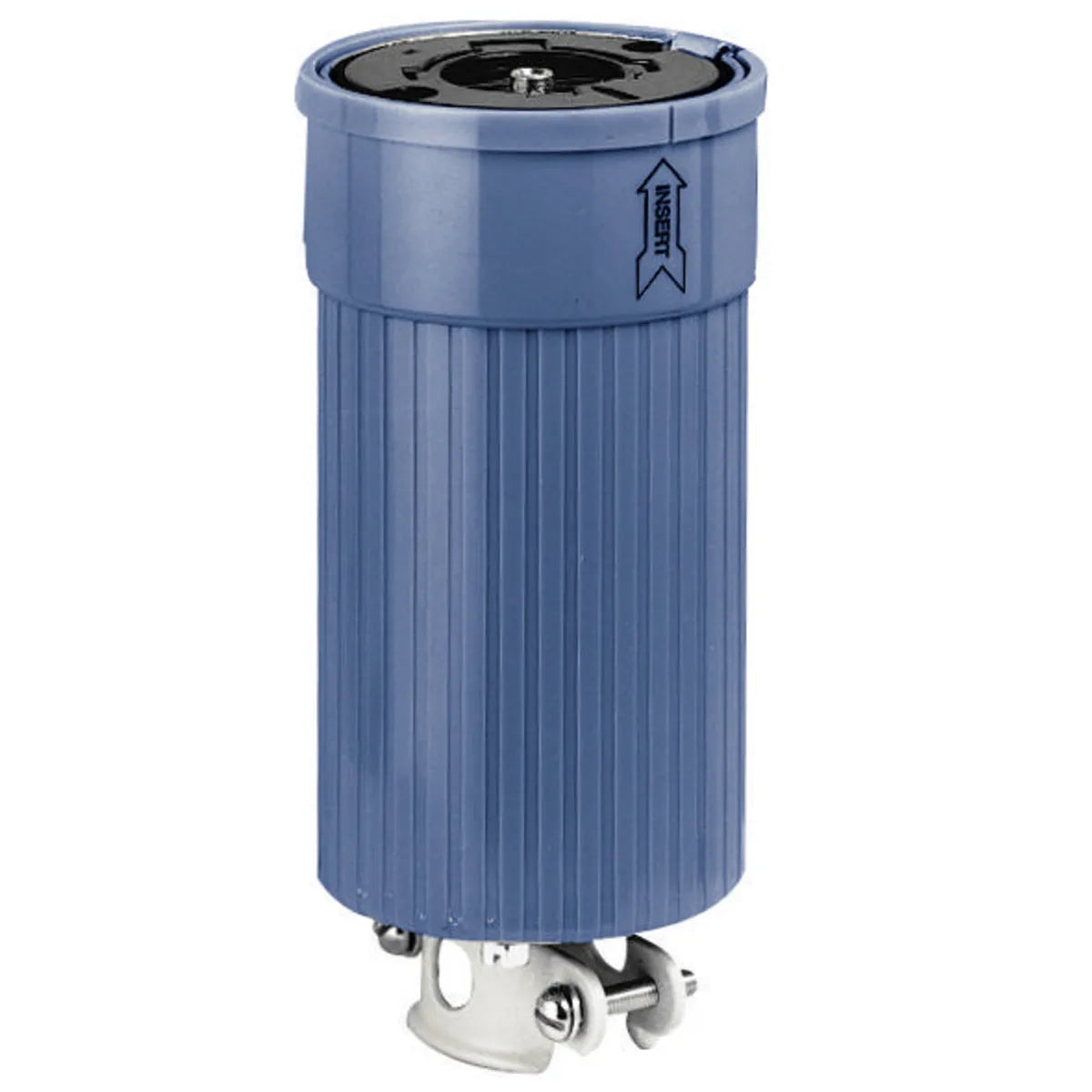

The BRYANT 26516 is a female connector body designed for heavy-duty industrial applications. Rated at 60A and 600V AC, this 4-pole, 5-wire grounding connector features a screw terminal and a blue polycarbonate outer cover with adjustable cord grip. It ensures safety with a spring-loaded shutter that contains arcing during mating and un-mating.

• Spring loaded safety shutter contains arcing when mating or un-mating devices under load
• Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
• Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability

Product Highlights

This Bryant connector is ideal for industrial environments, offering robust construction and reliable performance for power interrupting applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 26516

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 26516
• Color: Blue
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Insulation: Insulated Body
• Item Type: 60A Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Grounding
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786574168
• Amperage Rating: 60 A
• Connectivity: Pressure Terminal Screws
• Current Amperage Description: 60 Amp
• Current Rating: 60 A
• Voltage Rating: 600 VAC
• Voltage Rating Description: 600 VAC
• Conductor Range: #6 AWG to #4 AWG
• Number of Conductors: 5-Wire Grounding
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #18 AWG to #8 AWG
