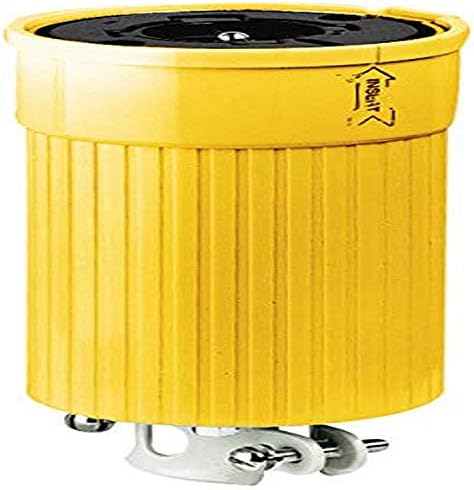

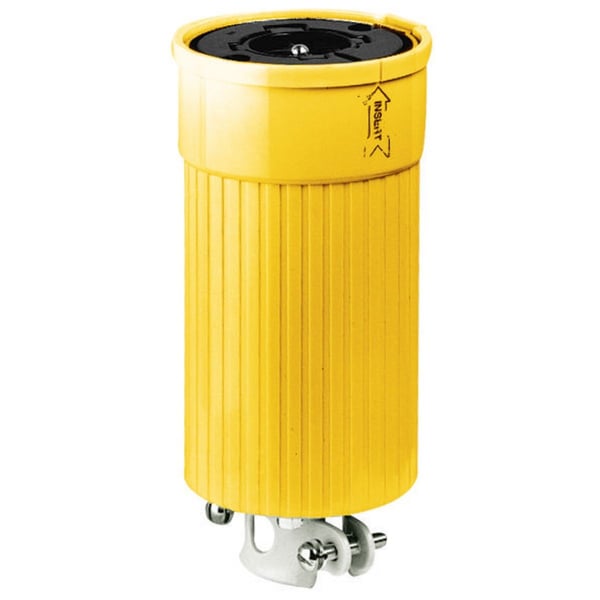

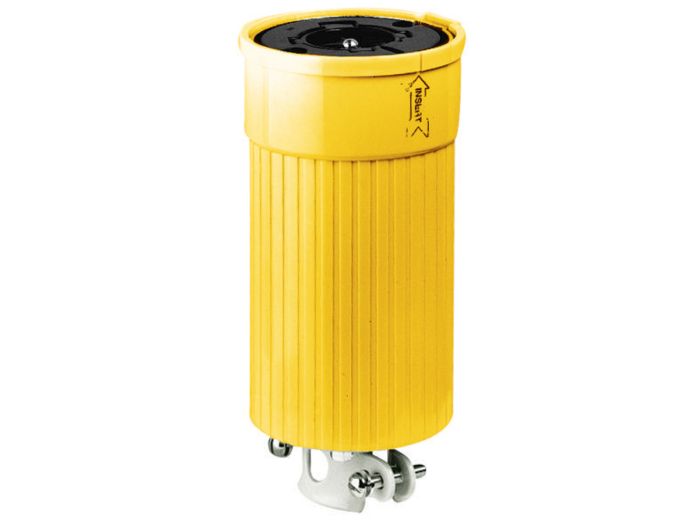

Bryant 26418 Power Interrupting Industrial Female Connector 60A 600V

Product Description

The BRYANT 26418 is a power interrupting industrial female connector. Rated at 60A and 600V AC, this connector features a spring-loaded safety shutter that contains arcing when mating or un-mating under load. It has box terminals with stainless steel screws for maximum termination strength. The insulated, color-coded metallic housing enhances safety and abuse resistance.

• Spring loaded safety shutter contains arcing when mating or un-mating devices under load
• Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
• Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability

Product Highlights

Heavy-duty connector for industrial applications. Ensures safe and reliable power connections with robust construction and safety features.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 26418

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 26418
• Color: Yellow
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Insulation: Insulated Body
• Item Type: 60A Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Grounding
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786584181
• Amperage Rating: 60 A
• Connectivity: Pressure Terminal Screws
• Current Amperage Description: 60 Amp
• Current Rating: 60 A
• Voltage Rating: 600 VAC
• Voltage Rating Description: 600 VAC
• Conductor Range: #6 AWG to #4 AWG
• Number of Conductors: 4-Wire Grounding
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Grade: Industrial
• Terminal Type: Pressure Screw
• Standard & Approvals: CSA C22.2 No. 182.2 Guide No. 20T2, NEMA WD1/WD6, UL 498 Guide No. AXUT
• Configuration: Female
• Cord Diameter: 0.92 to 1.45 in
• Manufacturer Part Number: 26418
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 600 VAC
• Body Type: Straight
• Connection Type: Connector
• Watertight: No
• Isolated Ground: No
• Amps: 60
• Connector Type: Plug in
