Bryant 25414 Power Interrupting Industrial Female Connector Body 30A 250V DC/600V AC Non-NEMA

Product Description

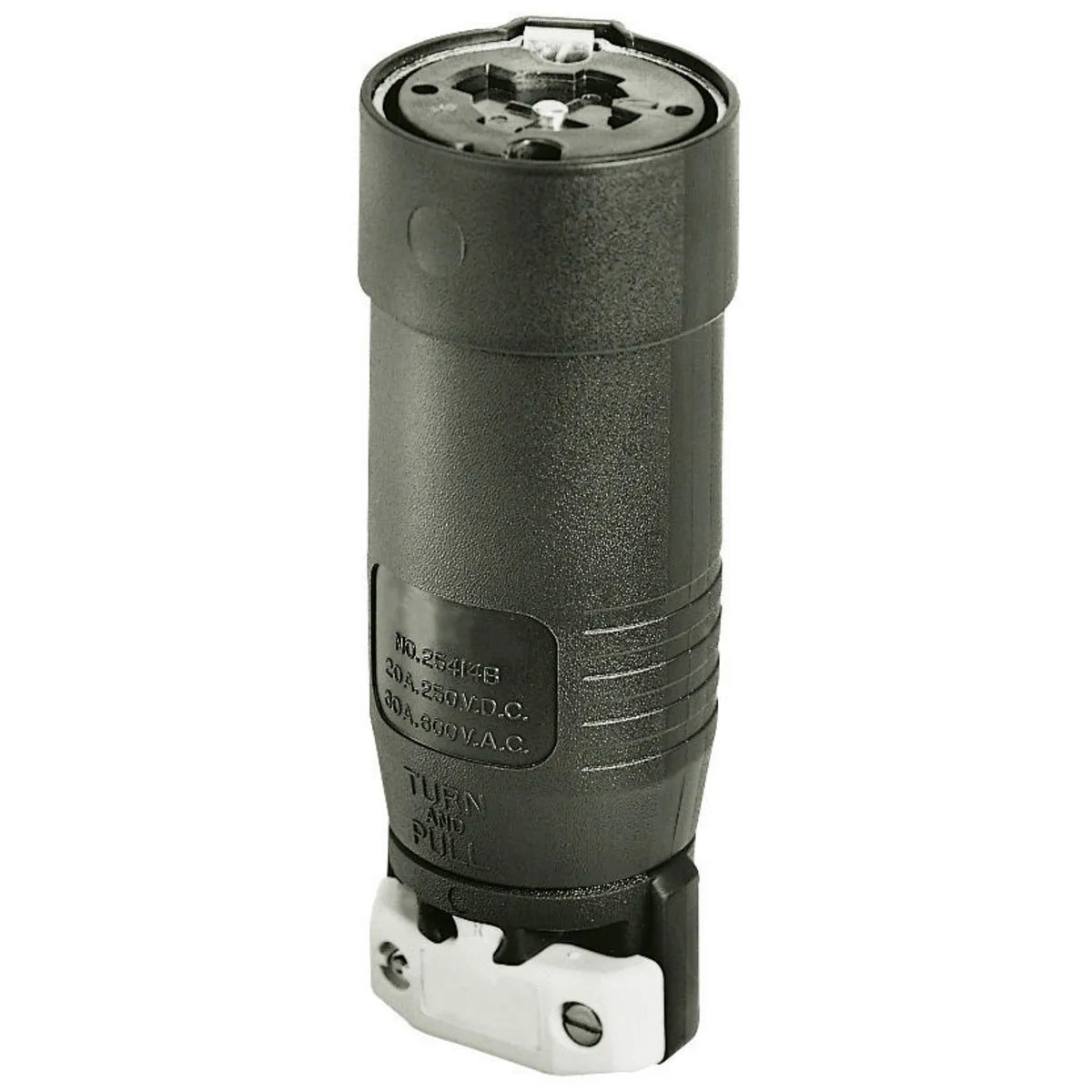

The BRYANT 25414 is a power interrupting, industrial female connector body. Rated for 30A 250V DC/600V AC, this non-NEMA connector features a black nylon body with cord grip. Designed for heavy-duty industrial applications, it ensures secure and reliable connections. Ideal for use in environments requiring robust and safe power connections.

• Spring loaded safety shutter contains arcing when mating or un-mating devices under load
• Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
• Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit

Product Highlights

Heavy-duty industrial connector with spring-loaded safety shutter and robust terminal design.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 25414
• Country of Origin: United States

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 25414
• Color: Black, White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Insulation: Insulated Body
• Item Type: 20A/30A Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Grounding
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786683952
• Dimensions: 2.69 in x 2.69 in x 6.78 in
• Display Size: Standard Sized Product
• Height: 6.78 in
• Length: 2.69 in
• Width: 2.69 in
• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current Amperage Description: 20 Amp /30 Amp
• Current Rating: 30 A
• Voltage Rating: 250 VDC/600 VAC
• Voltage Rating Description: 250 VDC/600 VAC
• Conductor Range: #12 AWG to #8 AWG
• Number of Conductors: 5-Wire Grounding
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #18 AWG to #8 AWG
• Brand: Bryant Hubbell
• Model: 25414
• MPN: 25414
• Condition: New
• Country of Origin: United States
• Weight: 1.75 lb
