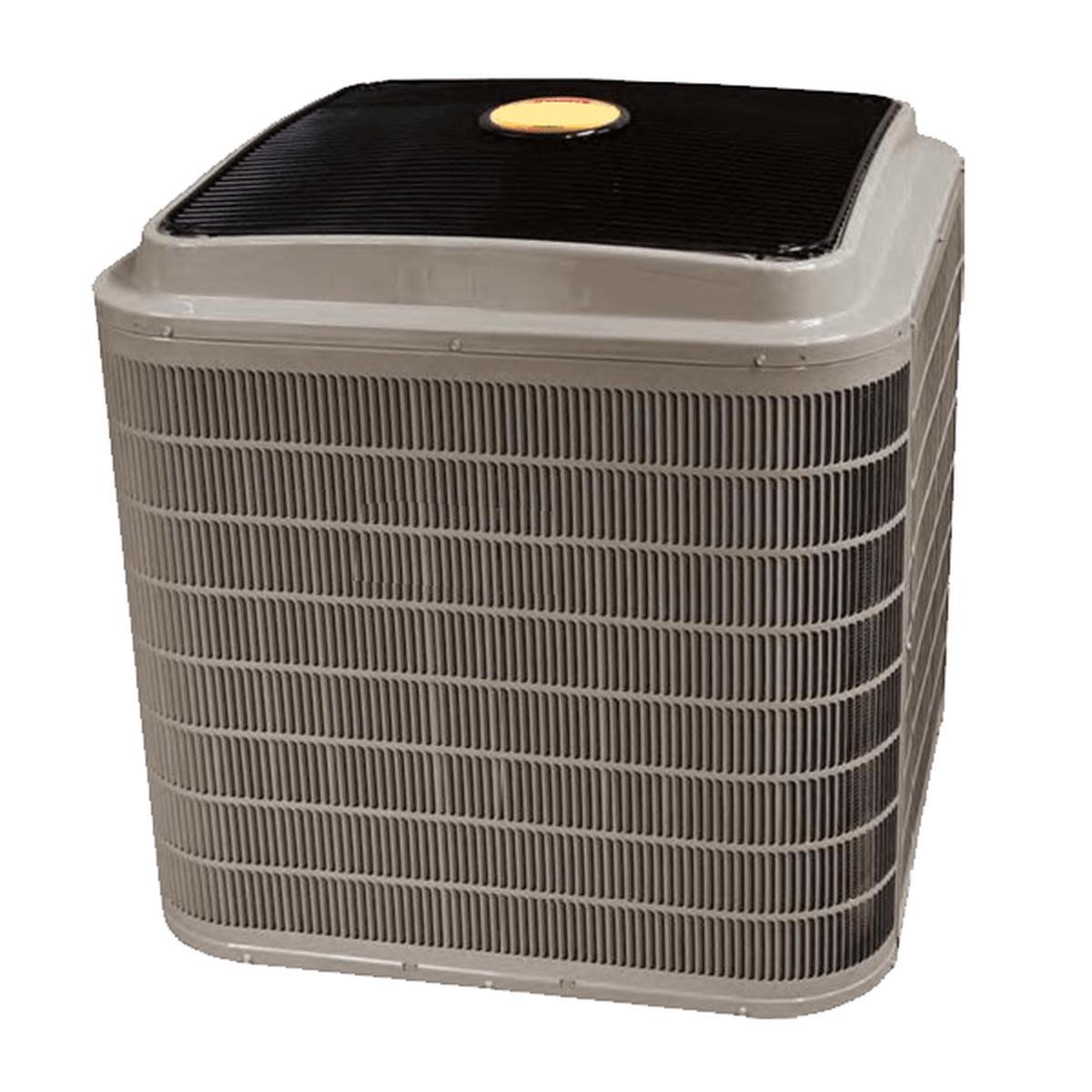

Bryant 226ANA024000 Preferred 2 Ton 16 SEER Residential Heat Pump

Product Description

The BRYANT 226ANA024000 Preferred Series heat pump provides energy-saving and consistent comfort with two-speed operation. This 2 ton unit offers cooling efficiency up to 17.5 SEER and heating efficiency up to 9.5 HSPF. Enhanced humidity control provides extra comfort during the summer months. Operates quietly and uses Puron refrigerant.

• Energy-saving
• Quiet operating
• Consistent comfort
• Two-speed operation
• Enhanced humidity control

Product Highlights

Efficient and durable, this BRYANT heat pump delivers worry-free comfort and savings with its two-speed operation and enhanced humidity control.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 226ANA024000
• Country of Origin: USA

Technical Specifications

• AHRI - Usage: Outdoor
• Brand: Bryant
• CFM: 3,200
• Condenser Motor HP: 1/12
• Condenser Motor RPM: 800
• Condenser Motor Speeds: 2
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Cooling Capacity: 22,400
• Cooling Rated Capacity Btu/h: 24000
• COP: 3.9
• Cycle/Hertz: 60 Hz
• EER: 11-13.5
• Energy Star Rated: true
• Equipment Type: Heat Pump
• Full Load Amps: 0.6
• Heating Capacity: 15,100
• HSPF: 9
• Inverter: false
• Liquid Line Size (OD): 3/8"
• Maximum Piping Length: 200'
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• OPT Code: 1P226ANA024000
• Phase: Single
• Product Family: 226A
• Prop 65: true
• Refrigerant: R-410A
• SEER: 16
• Sound Level (dBA): 73
• Substantial Commodity: Steel; Copper; Aluminum
• Suction Line Size (OD): 3/4"
• Tier: Preferred™
• Tonnage: 2
• Voltage: 208-230 VAC
• Liquid Line Fitting Type: Sweat or Braze
• Locked Rotor Amps (LRA): 58.3
• Rated Load Amps (RLA): 12.5
• Suction Line Fitting Type: Sweat or Braze
• Height: 39.125
• Length: 35
• Width: 35
• Maximum Overcurrent Protection (MOCP): 25
• Compressor Type: Scroll
• Condenser Fan CFM: 3200
• Approvals: UL Listed; UL Recognized
• Condenser Coil Fins per Inch (FPI): 20
• Model Number (s): 226ANA024000
• Type: Heat Pump
• Cooling Btu: 24,000
• Cooling Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 1-Phase
• Heating Btu: 25,000
• Amp(s): 25
• Min. Operating Temp. (Degrees Farenheit): -30
• Heating Stage(s): 1
• Depth (Inches): 35
• EER2: 0
• HSPF2: 0
