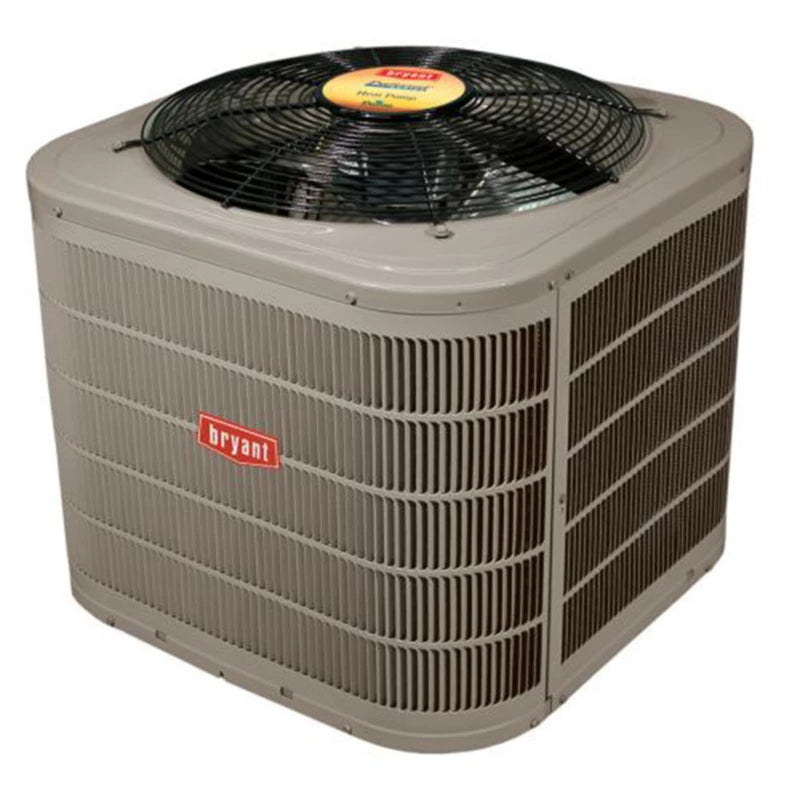

Bryant 225san06000a 5 Ton Heat Pump Condensing Unit

Product Description

The BRYANT 225san06000a is a 5-ton, single-stage residential heat pump condensing unit rated at 60,000 BTU/h cooling capacity with a 14.3-15.2 SEER2 efficiency rating. It runs on R-410A refrigerant and is designed for 208-230 volt, single-phase, 60 Hz electrical service. The unit uses a scroll compressor paired with a PSC condenser fan motor rated at 1/4 HP and 825 RPM, delivering 4,779 CFM of condenser airflow through a vertical discharge configuration. Energy Star rated, it is suited for licensed HVAC contractors installing or replacing split-system heat pump equipment in residential applications.

The 225san06000a is intended for residential split-system heat pump installations where a single-stage outdoor condensing unit is specified. It pairs with a compatible indoor air handler or coil cabinet to form a complete heating and cooling system. The unit ships with sweat or braze liquid and suction line connections, with a 3/8-inch OD liquid line and a 1-1/8-inch OD suction line. Typical applications include new construction and retrofit projects requiring a high-efficiency, single-stage heat pump in standard climatic regions.

Key Features

• 60,000 BTU/h cooling capacity (5 tons) with 14.3-15.2 SEER2 and 11-12.5 EER2 efficiency ratings
• Energy Star rated for compliance with high-efficiency program requirements
• Scroll compressor with single-stage cooling and heating operation
• PSC condenser fan motor at 1/4 HP, 825 RPM, 4,779 CFM vertical discharge
• Sweat or braze refrigerant line connections — 3/8-inch OD liquid line, 1-1/8-inch OD suction line
• UL Listed; manufactured in the USA

Compatibility

Designed as an OEM residential heat pump condensing unit for single-stage split systems using R-410A refrigerant; must be matched with a compatible indoor coil or air handler rated for 5-ton, R-410A operation. Verify system match using current AHRI directory listings before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, NEC requirements, and the manufacturer's installation instructions. Disconnect and lock out all electrical power and verify refrigerant recovery procedures comply with EPA Section 608 before opening the refrigerant circuit. Maximum overcurrent protection is 50 amps; verify supply circuit sizing and disconnect ratings match unit requirements. Do not exceed the specified liquid and suction line sizes, and ensure all brazed joints are leak-tested before system startup.

Technical Specifications

• Cooling Capacity: 60,000 BTU/h (5 tons)
• SEER2: 14.3-15.2
• SEER: 17
• EER2: 11-12.5
• Voltage: 208-230 VAC
• Phase: Single
• Cycle/Hertz: 60 Hz
• Rated Load Amps (RLA): 25.6 amps
• Full Load Amps: 1.2 amps
• Locked Rotor Amps (LRA): 150 amps
• Maximum Overcurrent Protection (MOCP): 50 amps
• Refrigerant: R-410A
• Compressor Type: Scroll
• Stages Cooling: 1
• Stages Heating: 1
• Condenser Fan CFM: 4,779
• Condenser Fan Discharge: Vertical
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Condenser Motor HP: 1/4 HP
• Condenser Motor RPM: 825
• Liquid Line Fitting Type: Sweat or Braze
• Liquid Line Size (OD): 3/8 inches
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 1-1/8 inches
• Sound Level: 72 dBA
• Color: Gray
• Length: 37.18 inches
• Width: 37.18 inches
• Height: 38.875 inches
• Weight: 321 pounds
• Energy Star Rated: Yes
• Approvals: UL Listed
• Country of Origin: USA

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 225san06000a
