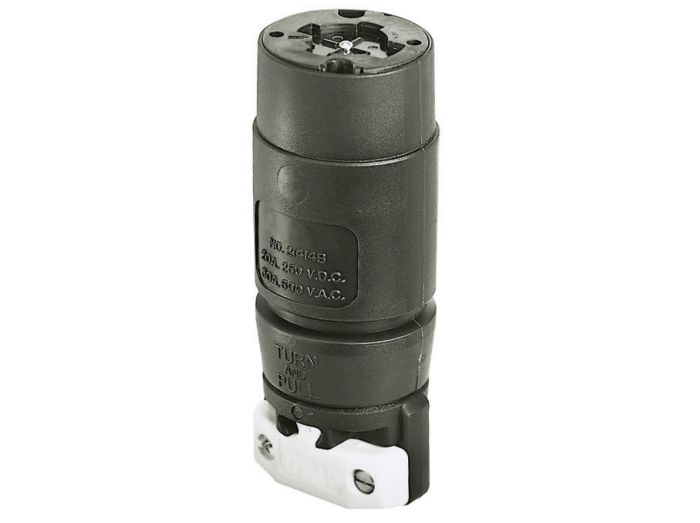

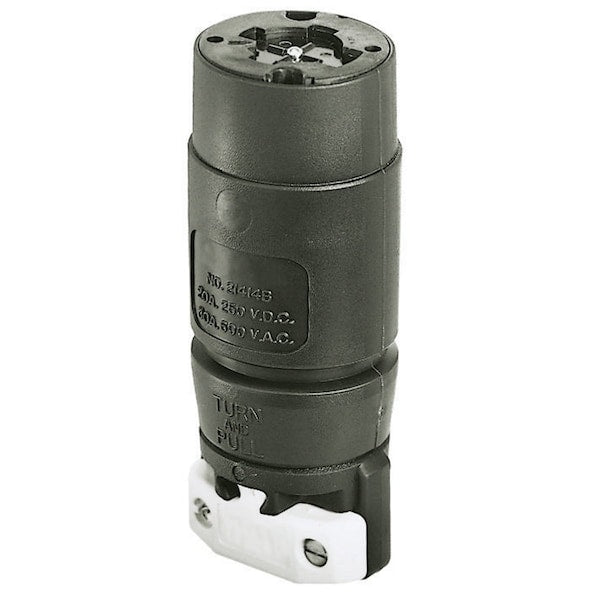

Bryant 21414 Locking Devices Industrial Female Connector Body 30A 250V DC/600V AC

Product Description

The BRYANT 21414 locking connector is an industrial female connector body. Rated for 30A 600V AC/ 20A 250V DC, this 3-pole, 4-wire grounding connector features screw terminals and a black nylon construction with cord grip. It is suitable for heavy-duty industrial applications.

• Spring loaded safety shutter contains arcing when mating or un-mating devices under load
• Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
• Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability

Product Highlights

This Bryant locking connector is ideal for industrial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 21414
• Country of Origin: Puerto Rico

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 21414
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Insulation: Insulated Body
• Item Type: 20A/30A Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Grounding
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786618602
• Dimensions: 2.44 in x 2.44 in x 6.00 in
• Display Size: Standard Sized Product
• Height: 6 in
• Length: 2.44 in
• Width: 2.44 in
• Amperage Rating: 20A/30 A
• Connectivity: Pressure Terminal Screws
• Current Amperage Description: 20 Amp /30 Amp
• Current Rating: 30 A
• Voltage Rating: 250 VDC/600 VAC
• Voltage Rating Description: 250 VDC/600 VAC
• Conductor Range: #12 AWG to #8 AWG
• Number of Conductors: 4-Wire Grounding
• Number Of Poles: 3
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Carton Quantity: 5
• Amps: 30
• Manufacturer Part Number: 21414
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 600 VAC
• Body Type: Straight
• Connection Type: Connector
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Net Weight: 0.72 lbs
• Gross Weight: 1.15 lbs
• NEMA Receptacle Configuration: Non-NEMA
• Phase: Three
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• Connection Orientation: Straight
• Grounding: Grounded
• Cap Type: No Cap
• Standards: CSA Certified to CSA C22.2 No.42, File 31943, File E17740, UL Listed to ANSI/UL 498
• Resistance Properties: protects against entry of moisture and dust
• For Maximum Cable Diameter: 1.20 in
• For Minimum Cable Diameter: 0.70 in
• Part #: 21414
• Category: Lug/Connector
• Weight: 1.15 lbs
