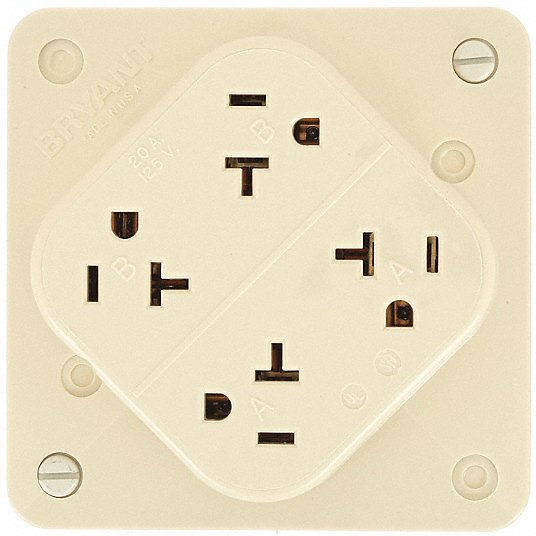

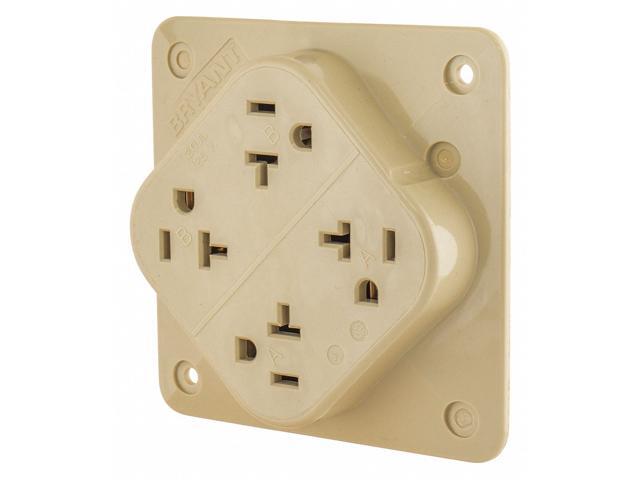

Bryant 21254I Quadplex Receptacle 20 Amp 125V

Product Description

The BRYANT 21254I quadplex receptacle is designed for retrofit, renovation, and new construction in institutional, industrial, and commercial settings. This receptacle features four outlets in a compact design, replacing single or duplex receptacles. It reduces installation and wiring time by utilizing existing conductors. Designed for direct mounting to various boxes or flush mounting to gang boxes.

• Accepts up to four straight or angle plugs.
• Features break-off tabs for split circuit wiring with clear identification.
• Equipped with heavy-duty, triple-wipe, high-performance brass line contacts for excellent retention and conductivity.

Product Highlights

The BRYANT Quadplex Receptacle offers convenience and flexibility for various power needs, making it ideal for commercial and industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 21254I
• Country of Origin: USA

Technical Specifications

• Brand: Bryant Electric
• Color: Ivory
• Compatible Devices: All
• Material: Nylon
• Voltage: 125 Volts
• Amperage: 20 Amps
• Connector Type: Plug-In
• Total Power Outlets: 4
• Application: Commercial/Industrial
• Catalog Number: 21254I
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Quad-Plex
• Material - Mounting Hardware: Screw Mounting
• Number Of Outlets: 4
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: Four Outlet Receptacle
• UPC: 781786336582
• Dimensions: 4.3 in x 4.30 in x 0.92 in
• Height: 0.92 in
• Length: 4.3 in
• Width: 4.3 in
• Amperage Rating: 20 A
• Connectivity: Terminals
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125V AC
• Voltage Rating Description: 125 V
• Wattage: 2500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Standards - RoHS Compliance Status: CM
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No
• Cover: No
• Face Plate Height: 4.3 in
• Face Plate Width: 4.3 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: General Use
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: Ivory
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.4 in
• Mount Hole Center-to-Center Width: 3.4 in
• Mount Type: Surface
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Wall Plates Included: 0
• Overall Depth: 0.9 in
• Polarized: Yes
• Receptacle Type: Quad
• Special Resistance: Impact Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• Model: 21254I
• MPN: 21254I
• Country of Origin: China
• Category: Business & Industrial
• Horse Power: N/A
