Bryant 20403 Power Interrupting Industrial Receptacle 30A 250V DC/600V AC

Product Description

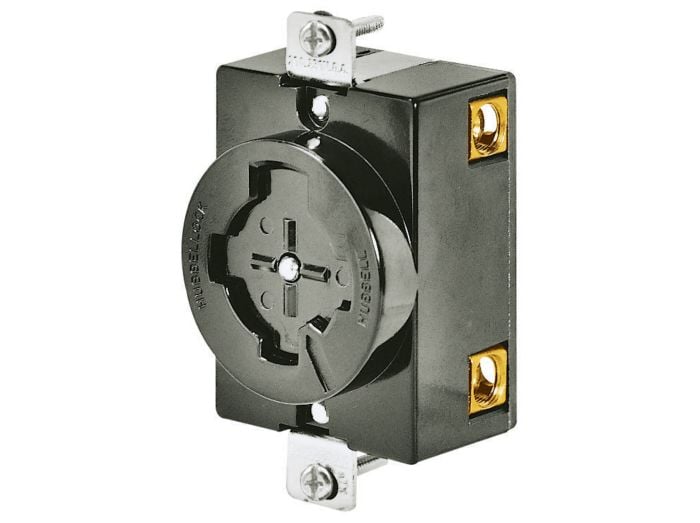

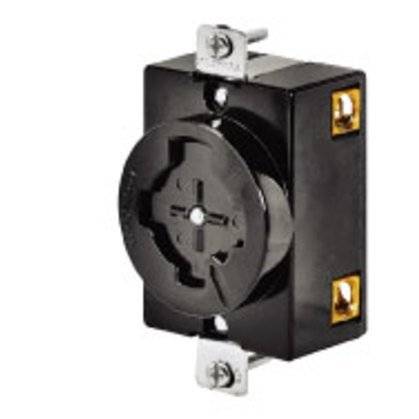

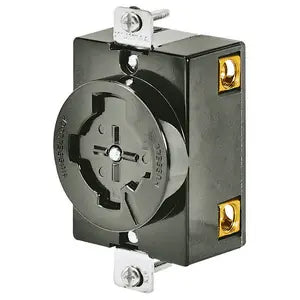

The BRYANT 20403 is a power interrupting industrial receptacle. Rated for 30A 600V AC/ 20A 250V DC, this 3-pole 4-wire grounding receptacle features a non-NEMA screw terminal and is designed for F.S. and F.D. boxes. The thermoset molded housing provides heat resistance.

• Spring loaded safety shutter contains arcing when mating or un-mating devices under load
• Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
• Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability

Product Highlights

The BRYANT 20403 receptacle is ideal for heavy-duty industrial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 20403
• Country of Origin: US

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 20403
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: 20A/30A Single Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Grounding
• Type: Receptacle
• UPC: 781786618473
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp /30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 600 V AC/250 V DC
• Voltage Rating Description: 250 VDC/600 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #10 AWG
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Body Type: Straight
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Grade: Industrial/Specification
• Manufacturer Name: Hubbell
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Pressure Screw
