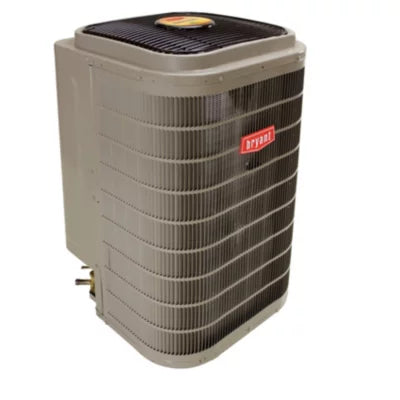

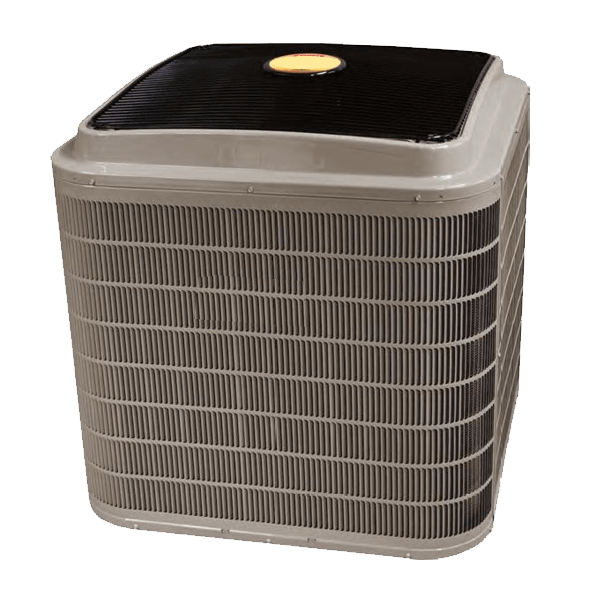

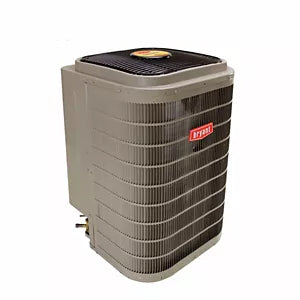

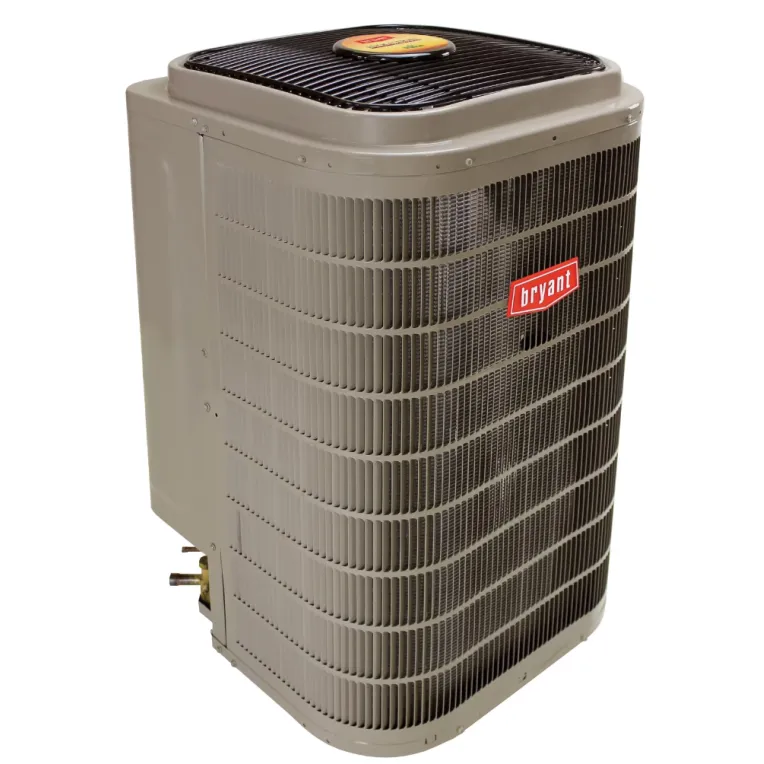

Bryant 189BNV060000 Evolution 5 Ton Residential Variable Speed Air Conditioner Condensing Unit

Product Description

The BRYANT 189BNV060000 Evolution air conditioner uses inverter technology and a rotary compressor to deliver variable-speed comfort control. This unit provides highly efficient, low-stage cooling that can operate down to 25% capacity for ultra-quiet operation and exceptional dehumidification.

• Features inverter technology
• Equipped with a rotary compressor
• Provides variable-speed comfort control

Product Highlights

This air conditioner delivers efficient cooling and dehumidification with quiet operation. It is designed for residential use and offers variable speed performance.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 189BNV060000
• Country of Origin: USA

Technical Specifications

• AHRI - Usage: Outdoor
• Brand: Bryant
• CFM: 4,500
• Condenser Motor HP: 1/3
• Condenser Motor RPM: 900
• Condenser Motor Speeds: 1
• Condenser Motor Type: ECM (Electronically Commutated Motor)
• Cooling Capacity: 55,000
• Cooling Rated Capacity Btu/h: 60000
• Cycle/Hertz: 60 Hz
• EER: 9-13
• EER2: 10
• Energy Star Rated: true
• Equipment Type: Straight Cool
• Full Load Amps: 1.4
• Inverter: true
• Liquid Line Size (OD): 3/8"
• Maximum Piping Length: 100'
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• OPT Code: IP189BNV060000
• Phase: Single
• Product Family: 189BNV
• Prop 65: true
• Refrigerant: R-410A
• SEER: 19
• SEER2: 16.5
• Sound Level (dBA): 72
• Substantial Commodity: Steel; Copper; Aluminum
• Suction Line Size (OD): 1 1/8"
• Tier: Evolution™
• Tonnage: 5
• Voltage: 208-230 VAC
• Liquid Line Fitting Type: Sweat or Braze
• Rated Load Amps (RLA): 30.9
• Suction Line Fitting Type: Sweat or Braze
• Height: 42.3125
• Length: 31.1875
• Width: 31.1875
• Maximum Overcurrent Protection (MOCP): 60
• Compressor Type: Rotary
• Country of Origin: USA
• Condenser Fan CFM: 4500
• Approvals: UL Listed; UL Recognized
• Condenser Coil Fins per Inch (FPI): 20
• Model Number (s): 189BNV060000
• Type: Air Conditioning
• Cooling Btu: 57,500
• Compressor Stage: Inverter
• Electrical Phase(s): 1-Phase
• Decibel Level (dB): 72
• Suction Valve Size (Inches): 7/8
• Liquid Valve Size (Inches): 3/8
• UPC #: 646341716028
• Amp(s): 60
• Maximum CFM: 4,500
• Depth (Inches): 23 1/8
• Fuse Size: 50 A
• Material: Galvanized Steel
• Temperature Rating: 40 deg F
• Series: Evolution 189BNV
• Control Type: TXV
• Discharge Line Size: 3/8 in
• Domestic/Import: Domestic
• Flow Rate: 4500 cfm
• Motor Type: Brushless DC Condenser
