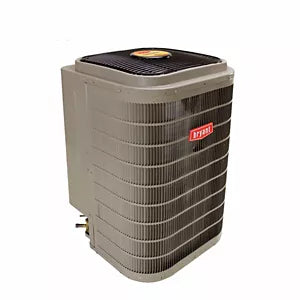

Bryant 189BNV025000 Evolution 2 Ton Residential Variable Speed Air Conditioner Condensing Unit

Product Description

The BRYANT 189BNV025000 Evolution air conditioner uses inverter technology and a rotary compressor to deliver variable-speed comfort control. This unit provides highly efficient, low-stage cooling that can operate down to 25% capacity for ultra-quiet operation. It also offers exceptional dehumidification and comfort. The unit has a cooling capacity of 22,800 BTU/h and operates at 208-230 VAC.

• Uses inverter technology and a rotary compressor
• Variable-speed comfort control
• Highly efficient, low-stage cooling

Product Highlights

Offers variable-speed comfort control, efficient cooling, and quiet operation with exceptional dehumidification.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 189BNV025000
• Country of Origin: USA

Technical Specifications

• AHRI - Usage: Outdoor
• Brand: Bryant®
• CFM: 2,500
• Condenser Motor HP: 1/3
• Condenser Motor RPM: 1,050
• Condenser Motor Speeds: 1
• Condenser Motor Type: ECM (Electronically Commutated Motor)
• Cooling Capacity: 22,800
• Cooling Rated Capacity Btu/h: 24000
• Cycle/Hertz: 60 Hz
• EER: 9.5-13
• EER2: 12.5
• Energy Star Rated: true
• Equipment Type: Straight Cool
• Full Load Amps: 1.2
• Inverter: true
• Liquid Line Size (OD): 3/8"
• Maximum Piping Length: 100'
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• Phase: Single
• Product Family: 189BNV
• Prop 65: true
• Refrigerant: R-410A
• SEER: 19
• SEER2: 18.5
• Sound Level (dBA): 69
• Substantial Commodity: Steel; Copper; Aluminum
• Suction Line Size (OD): 3/4"
• Tier: Evolution™
• Tonnage: 2
• Voltage: 208-230 VAC
• Liquid Line Fitting Type: Sweat or Braze
• Rated Current Amps (RCA): 17.7
• Rated Load Amps (RLA): 17.7
• Suction Line Fitting Type: Sweat or Braze
• Height: 38.5
• Length: 23.125
• Width: 23.125
• Maximum Overcurrent Protection (MOCP): 40
• Compressor Type: Rotary
• Country of Origin: USA
• Condenser Fan CFM: 2500
• Approvals: UL Listed; UL Recognized
• Condenser Coil Fins per Inch (FPI): 20
