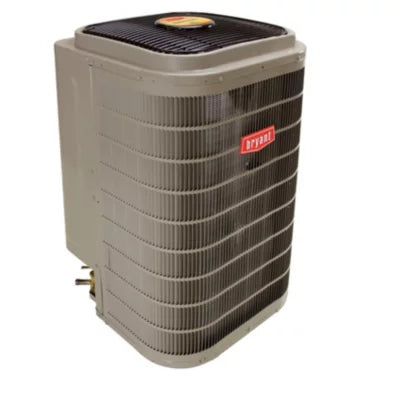

Bryant 186cnv048000 Ac Condensing Unit 4 Ton 21 Seer R-410A

Product Description

The BRYANT 186cnv048000 is a 4-ton residential air conditioner condensing unit rated at 48,000 BTU/h with a 21 SEER and 22 SEER2 efficiency rating. It operates on R-410A refrigerant and runs on 208-230 VAC single-phase, 60 Hz power. The unit uses a rotary compressor paired with a variable-speed PSC condenser motor rated at 1/3 HP and 200-800 RPM, delivering 5,200 CFM of airflow. Energy Star certified and UL Listed, this condensing unit is intended for licensed HVAC technicians performing residential cooling system installations or replacements.

This unit is designed for residential split-system cooling applications where high-efficiency performance is required. The inverter-driven variable-speed motor and rotary compressor allow the unit to modulate capacity, making it well suited for installations where precise comfort control and energy efficiency are priorities. Liquid and suction line connections are sweat or braze type, with an OD liquid line size of 3/8 inches and an OD suction line size of 7/8 inches. Maximum piping length is 250 feet. The unit carries a gray finish and produces a sound level between 53 and 68 dBA during operation.

Key Features

• 48,000 BTU/h cooling capacity at 4 tons
• 21 SEER and 22 SEER2 efficiency ratings — Energy Star certified
• Variable-speed PSC condenser motor (200-800 RPM, 1/3 HP) for modulating airflow
• Inverter-driven rotary compressor for single-stage cooling
• R-410A refrigerant with sweat or braze line connections
• Maximum piping length of 250 feet supports flexible installation layouts
• UL Listed; manufactured in the USA

Compatibility

Designed as an OEM residential split-system condensing unit within the Bryant 186CNV product family. Compatible air handlers and indoor coils should be matched per Bryant system-matching guidelines to achieve rated SEER and SEER2 performance. No additional compatible model numbers were specified in the available product data.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, the NEC, and manufacturer guidelines. Disconnect and lock out all power before servicing or connecting refrigerant lines. Refrigerant handling requires EPA Section 608 certification. Do not exceed the 30-amp maximum overcurrent protection rating when sizing disconnect and fusing.

Technical Specifications

• Cooling Capacity: 48,000 BTU/h
• Tonnage: 4 tons
• SEER: 21
• SEER2: 22
• EER: 13
• EER2: 13.5
• Voltage: 208-230 VAC
• Phase: Single
• Cycle: 60 Hz
• Rated Load Amps (RLA): 14.6
• Full Load Amps: 0.88
• Maximum Overcurrent Protection (MOCP): 30 amps
• Refrigerant: R-410A
• Compressor Type: Rotary
• Cooling Stages: Single
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Condenser Motor HP: 1/3 HP
• Condenser Motor RPM: 200-800
• Condenser Motor Speeds: Variable
• CFM: 5,200
• Condenser Coil Fins per Inch (FPI): 20
• Liquid Line Fitting Type: Sweat or Braze
• Liquid Line Size (OD): 3/8 inches
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 7/8 inches
• Maximum Piping Length: 250 feet
• Sound Level: 53-68 dBA
• Color: Gray
• Energy Star Rated: Yes
• Approvals: UL Listed
• Country of Origin: USA

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 186cnv048000
