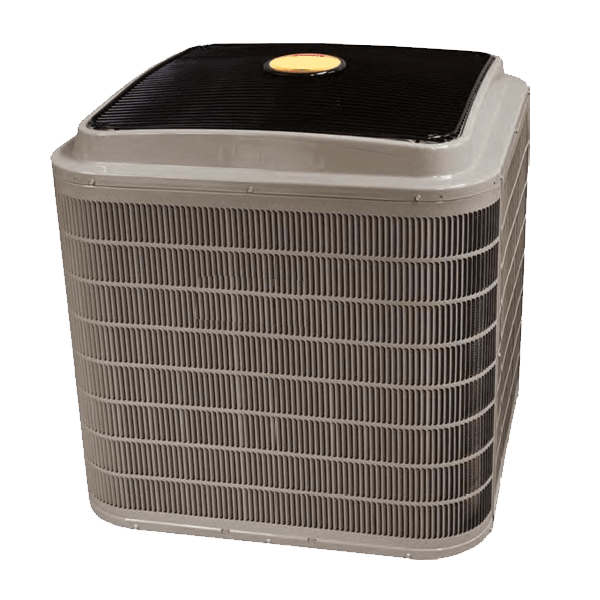

Bryant 180bna060000 Condenser 5 Ton 16.7 Seer R-410A

Product Description

The BRYANT 180bna060000 is a 5-ton, two-stage residential air conditioner condenser designed for split-system cooling installations. Rated at 16.7 SEER and 58,000 BTU/h, it uses R-410A refrigerant and operates on a single-phase 208/230-volt electrical supply. The two-stage compressor allows the unit to run at a reduced capacity during moderate load conditions, which lowers runtime energy draw and helps maintain more consistent indoor temperatures. Licensed HVAC technicians handle installation and commissioning. At 330 pounds, this is a substantial outdoor unit requiring appropriate rigging and pad or bracket mounting on site.

This condenser is suited for residential and light-commercial cooling applications where a high-capacity, two-stage system is specified. The 5-ton capacity targets larger homes or zoned systems with matching air handlers or coils. The unit ships with a 7/8-inch suction valve connection and a 3/8-inch liquid valve connection, matching standard line-set sizing for this tonnage class. The 69 dB sound rating is within the typical range for equipment in this capacity class.

Key Features

• Two-stage compressor operation for improved part-load efficiency and comfort
• 16.7 SEER efficiency rating with 58,000 BTU/h cooling capacity
• R-410A refrigerant with 7/8-inch suction and 3/8-inch liquid valve connections
• Single-phase 208/230-volt, 60-amp electrical configuration
• Maximum airflow of 4,668 CFM
• 10-year parts and compressor warranty
• 69 dB operating sound level

Compatibility

Designed as an OEM two-stage split-system condenser intended for use with compatible BRYANT or matched-brand air handlers and evaporator coils sized for 5-ton, R-410A applications.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power before handling refrigerant connections or electrical terminations. R-410A systems require EPA Section 608-certified technicians for refrigerant handling. Verify that the existing line set, disconnect, and breaker are rated for the 60-amp draw before energizing the unit.

Technical Specifications

• Cooling Capacity: 58,000 BTU/h
• SEER: 16.7
• Tonnage: 5.0 tons
• Compressor Stages: Two
• Voltage: 208/230 volts
• Amperage: 60 amps
• Electrical Phase: 1-Phase
• Refrigerant Type: R-410A
• Suction Valve Size: 7/8 inches
• Liquid Valve Size: 3/8 inches
• Maximum CFM: 4,668
• Sound Level: 69 dB
• Height: 47.0625 inches
• Width: 35 inches
• Depth: 35 inches
• Shipping Weight: 330 pounds
• Parts Warranty: 10 years
• Compressor Warranty: 10 years

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 180bna060000
