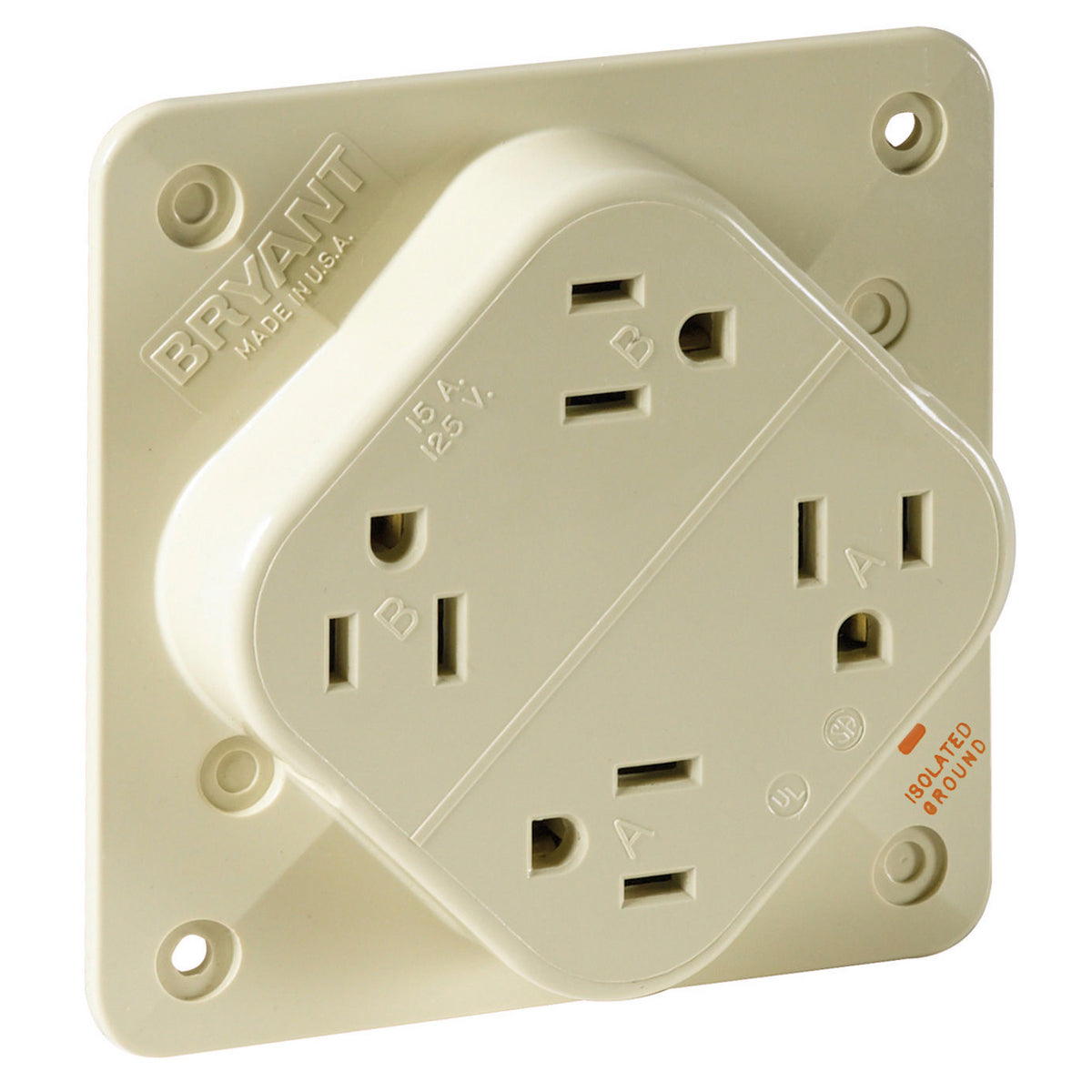

Bryant 1254SIA Quadplex Receptacle Surge Suppression Isolated Ground 15A 125V 5-15R

Product Description

The BRYANT 1254SIA is a QUADPLEX receptacle with surge suppression and isolated ground. This receptacle is rated for 15A and 125V, and features a 2-pole, 3-wire grounding configuration with a 5-15R NEMA rating. It is designed for commercial and industrial applications.

• Surge suppression
• Isolated ground
• LED visual status indicator

Product Highlights

This receptacle provides basic, non-locking power connections where electrical performance and durability are required.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 1254SIA
• Country of Origin: USA

Technical Specifications

• Application: Quad-Plex
• Catalog Number: 1254SIA
• Color: Ivory
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Indicator(s) Type: LED Visual Status Indicator
• Item Type: Smooth Face
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• Number Of Outlets: 4
• OEM Brand Name: Hubbell Bryant
• Operating Temperature: 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
• Outlet: Straight Blade
• Response Time: 5
• Series: Commercial
• Type: Four Outlet Receptacle
• UPC: 781786190030
• Amperage Rating: 15 A
• Connectivity: Terminals
• Current Rating: 15 A
• Frequency Rating: 60 Hz
• Phase: Single Phase
• Voltage Rating: 125 V
• Wattage: 1875 W
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Nema Rating: 5-15R
• Connection Orientation: Straight
• Cover Type: No
• Cover: No
• Flange Type: Non-Flanged
• For Location: Indoor
• Grade: General Use
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Ivory
• IP Rating: IP20
• Includes: Mounting Hardware
• Mount Type: Flush
• Mounting Location: Outlet Box
• Number of Gangs: 1
• Number of Wall Plates Included: 0
• Polarized: Yes
• Receptacle Type: Quad
• Special Resistance: Impact Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: Yes
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
