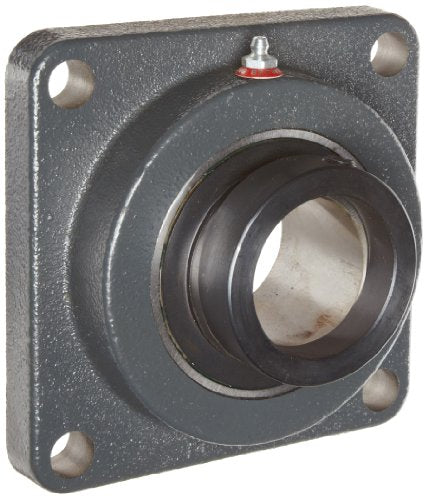

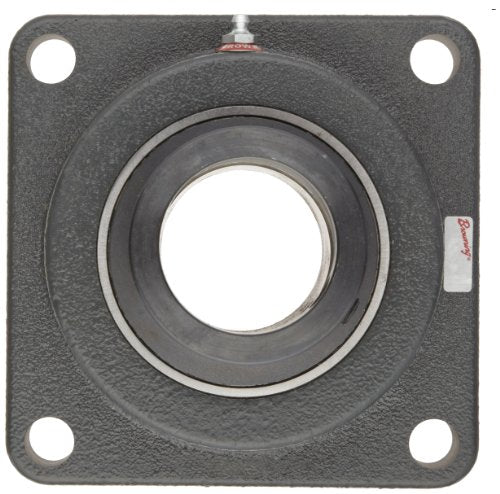

Browning VF4E-223 Normal-Duty Flange Unit Cast Iron 1-7/16 inch Bore

Product Description

The Browning VF4E-223 flange unit features a robust cast iron construction and accommodates a 1-7/16 inch bore. Engineered for normal-duty applications, this four-bolt flange unit includes an eccentric locking mechanism and is designed for reliable alignment and shaft support in a variety of industrial settings.

• Cast iron housing enhances rigidity and damps vibrations.
• Double-sealed ball bearing insert offers protection against contaminants.
• Eccentric collar ensures secure shaft locking for stable operation.

Product Highlights

This unit is particularly suited for conveyor systems, fans, blowers, and other machinery where perpendicular alignment to the shaft axis is required. Its solid cast iron housing provides a stable base and is equipped with a grease fitting for maintenance ease.

Product Information

Standard Information

• Brand: Browning
• MPN: VF4E-223

Technical Specifications

• Material: Cast Iron
• Bore Size: 1-7/16 inches
• Lock Type: Eccentric Lock
• Seal Type: Contact and Flinger
• Bolt Hole Spacing Width: 3-5/8 inches
• Overall Width: 4-5/8 inches
