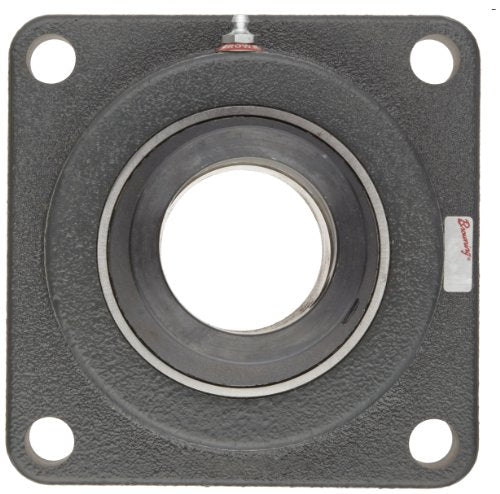

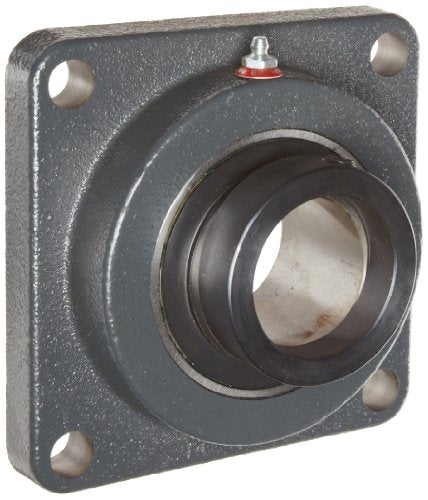

Browning VF4E-219 4 Bolt Flange Unit 1 3/16 Inch Bore Replacement VF4E-219

Product Description

The Browning VF4E-219 4 Bolt Flange Unit is engineered for superior performance in industrial settings. Constructed with a robust cast iron housing, this flange unit offers exceptional durability and vibration damping capabilities essential for heavy machinery applications.

• Equipped with an eccentric locking collar that ensures secure shaft mounting.
• Features double-sealed ball bearings for reliable operation under moderate radial and thrust loads.
• Nitrile rubber contact seals and flingers enhance sealing efficiency, keeping lubricants in and contaminants out.

Product Highlights

This flange unit is distinguished by its normal-duty rating and capability to handle a combination of radial and thrust loads. It is particularly well-suited for conveyors, fans, and construction machinery.

Product Information

Standard Information

• Brand: Browning
• MPN: VF4E-219

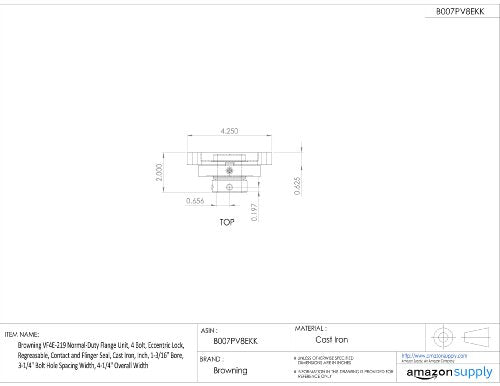

Technical Specifications

• Bore Size: 1 3/16 inches
• Bolt Hole Spacing Width: 3 1/4 inches
• Overall Width: 4 1/4 inches
• Material: Cast Iron
• Locking Mechanism: Eccentric Lock
• Seal Type: Contact and Flinger
