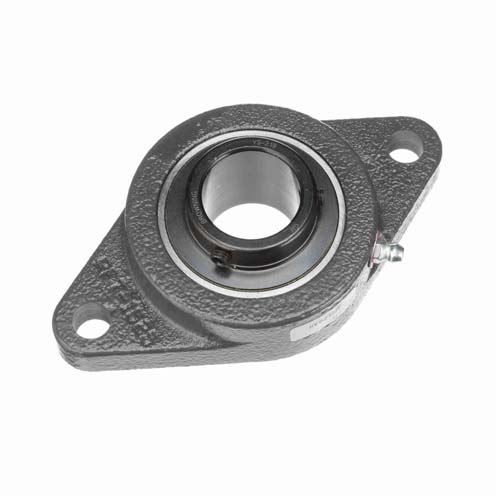

Browning VF2S-219 AH Flange-Mount Ball Bearing Unit 1-3/16 in Bore Replacement MPN

Product Description

The Browning VF2S-219 AH is a flange-mount ball bearing unit designed to provide reliable support for rotary motion. This bearing has a bore diameter of one and three-sixteenths inches and features a two-bolt flange mount for easy installation.

• Standard duty construction suitable for general applications
• Single lip contact seal with flinger to enhance durability
• Powder coat epoxy cast iron housing for added strength

Product Highlights

This product provides a straightforward solution for mounting machinery components securely. It is ideal for applications where alignment is needed on lightweight frames.

Product Information

Standard Information

• Country Of Origin: Mexico
• Minimum Order Quantity: 1

Technical Specifications

• Weight: 1.89 lbs
• Max RPM: 4500 rpm
• Duty Type: Standard Duty
• Bore Diameter: 1-3/16 in
• Overall Length: 5.5630 in
• Overall Width: 3.1250 in
• Overall Height: 1.5625 in
• Max Operating Temperature: 200 °F
• Operating Temperature Range: -20° to 200 °F
• Radial Static Load Capacity: 2567 lbf
• Radial Dynamic Load Capacity: 4381 lbf
• Replacement Bearing: VS-219
