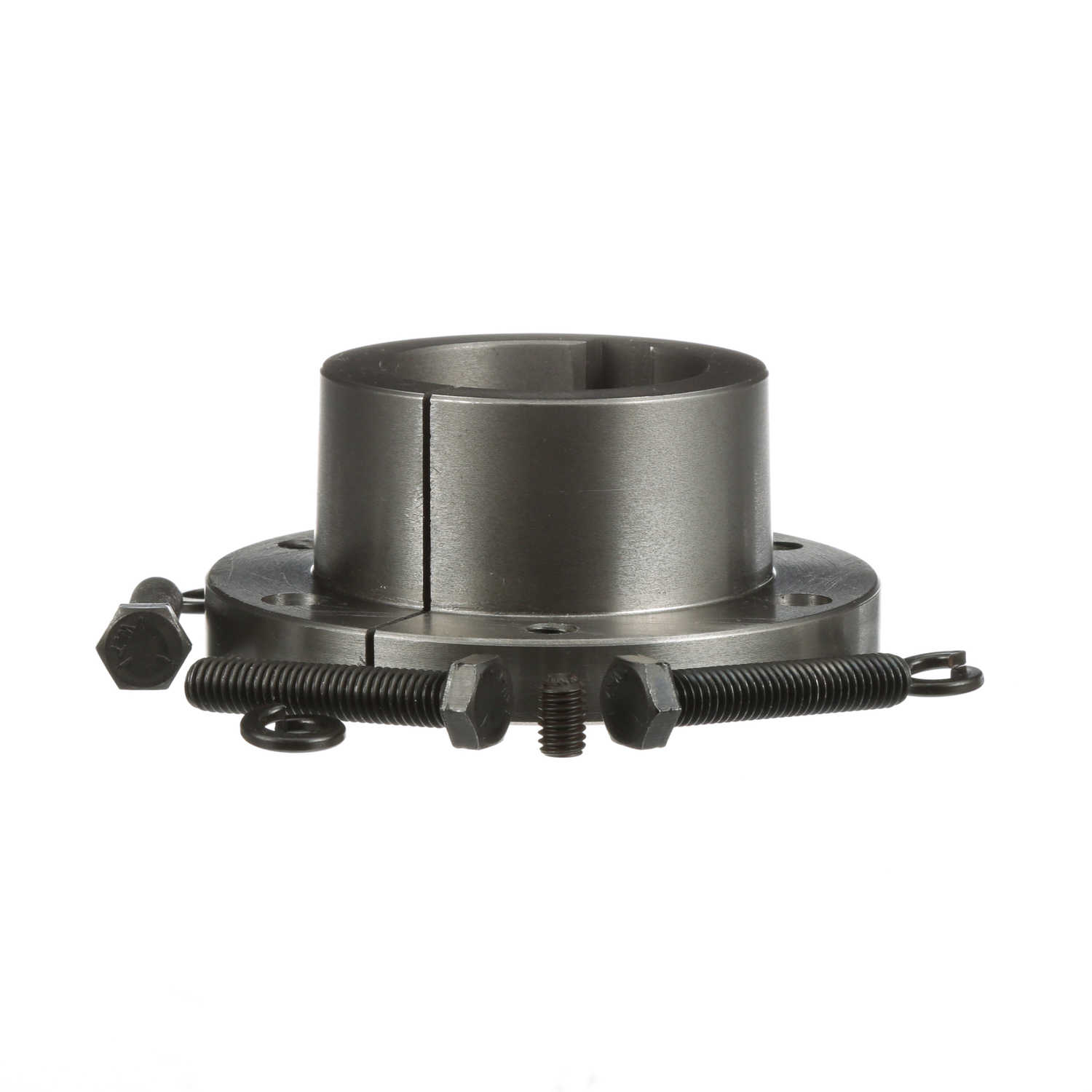

Browning SF23/16 Quick Disconnect Bushing 2.1875 in Bore 4.6250 in Flg OD

Product Description

The Browning SF23/16 is a quick disconnect bushing designed for efficient mounting and dismounting in various mechanical applications. With a bore size of two point one eight seven five inches and a flange outer diameter of four point six two five inches, this bushing is made from gray iron material (G3027). It is suitable for use in diverse mechanical power transmission settings.

• Mounts on either side for versatile installation.
• Self-locking taper ensures secure attachment.
• Compatible with a standard keyway for optimal performance.

Product Highlights

This bushing features a reverse mounting ability, enabling a more flush view of the product face. The self-locking taper provides the highest degree of mechanical locking between components, promoting durability and efficiency in assembly.

Product Information

Standard Information

• Manufacturer: Browning
• Country of Origin: Mexico

Technical Specifications

• MPN: SF23/16
• Material: Gray Iron - G3027
• Bore Diameter: 2.1875 in
• Flange Outside Diameter: 4.6250 in
• Length Through Bore: 1.9950 in
• Barrel Length: 1.4375 in
• Barrel Diameter: 3.1250 in
• Keyway Size: 1/2 x 1/4 in
• Mounting Type: Conventional
• Torque Capacity: 11000 in
• Flange Thickness: 0.5625 in
• Screw Length: 2 in
• Screw Torque: 30 ft-lbs
• Number of Bolt Holes: 3
• Bolt Circle Diameter: 3.8750 in
