Browning S1315/16 Split Taper Bushings

Product Description

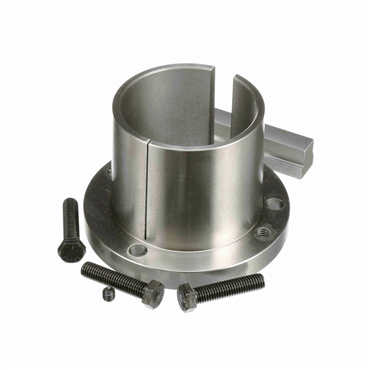

The Browning S1315/16 Split Taper Bushing is designed for use in mechanical power transmission applications. This bushing connects a shaft of a smaller diameter to a product requiring a larger diameter. It is suitable for many applications, including fans, blowers, conveyors, pumps, mixers, and more.

• Length through bore: 4.38 inches
• Bore size: 3.94 inches
• Material: Sintered steel or ductile iron

Product Highlights

This bushing features a lifetime warranty provided by Browning, ensuring replacement if it ever fails. Its solid flange and double split barrel design assure superior concentricity to the shaft, ensuring reliable performance.

Product Information

Standard Information

• Brand: Browning
• MPN: S1315/16

Technical Specifications

• Length Through Bore: 4.38 inches
• Bore Type: Inch
• Overall Length: 4.38 inches
• Wrench Torque: 840 in-lb
• Bushing Type: S1
• Bore Size: 3.94 inches
• Keyseat: 1 x 1/2 inches
• Weight: 8.75 pounds
• UPC: 662289181483
