Browning Q111/8 | Sintered Steel or Ductile Iron Taper Bushing

Product Description

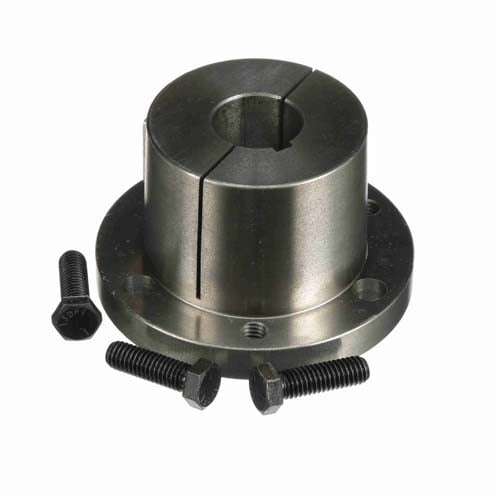

The Browning Q111/8 is a taper bushing made from either sintered steel or ductile iron. This component is designed to fit a bore size of one point one three inches and a length through bore of two point five inches.

• Lifetime warranty provided by Browning
• Solid flange and double split barrel for improved concentricity
• Self-locking taper for mechanical stability

Product Highlights

The Browning Q111/8 taper bushing features a solid flange and a double split barrel for reliable performance. It ensures a tight fit with the shaft and provides a strong drive via its key to key design.

Product Information

Standard Information

• Brand: Browning
• MPN: Q111/8

Technical Specifications

• Wrench Torque: 348 in-lb
• Keyseat: 1/4 x 1/8 in
• Compatible Bore Size [Max]: 1.13 in
• Length Through Bore: 2.5 in
• Bore Size: 1.13 in
• Bore Type: Inch
• Material: Sintered Steel or Ductile Iron
• Overall Length: 2.5 in
