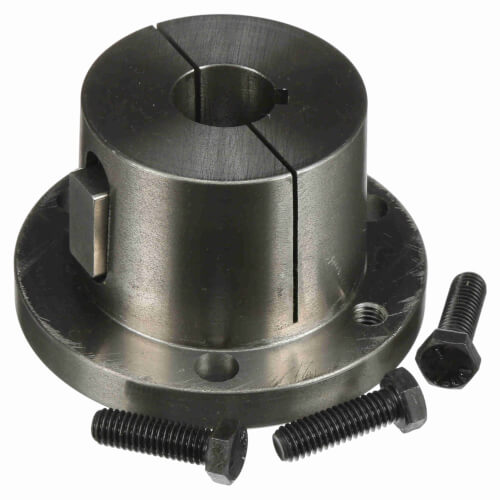

Browning Q11 Sintered Steel or Ductile Iron Taper Bushing Each

Product Description

The Browning Q11 is a taper bushing that provides reliable performance in various mechanical applications. It is designed from sintered steel or ductile iron material, ensuring durability and strength.

• Lifetime Warranty - Replacement by Browning if failure occurs.
• Solid Flange and Double Split Barrel - Provides better alignment with the shaft.
• Key to Key Drive - Enhances drive strength through key alignment.

Product Highlights

This bushing is essential for applications requiring mechanical locking features, capable of accommodating a bore size of one inch.

Product Information

Standard Information

• Brand: Browning
• MPN: Q11

Technical Specifications

• Weight: 4.495 LB
• Wrench Torque: 348 in-lb
• Bore Type: Inch
• Keyseat: 1/4 x 1/8 in
• Bore Size: 1 in
• Length Through Bore: 2.5 in
• Material: Sintered Steel or Ductile Iron
• Bushing Type: Q1
• Compatible Bore Size [Max]: 1 in
• Overall Length: 2.5 in
• EAN or UPC: 662289109609
• NSN Number: 3130-01-028-4867
