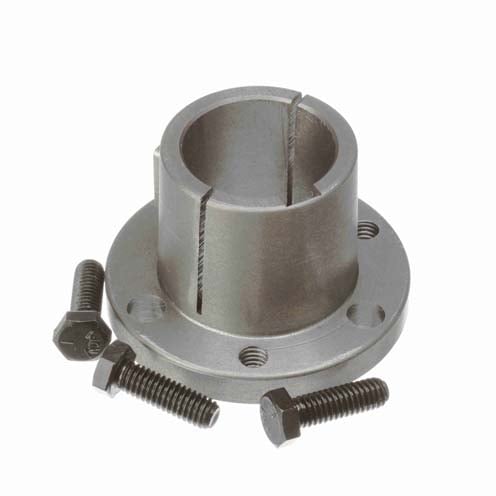

Browning P117/16 Sintered Steel or Ductile Iron Taper Bushing

Product Description

The Browning P117/16 is a robust bushing designed for effective mechanical drive applications. This product features a versatile design that accommodates a bore size of one point four four inches. Precision-engineered for enhanced performance, it also incorporates a solid flange and double split barrel structure to assure better concentricity to the shaft.

• Lifetime warranty on failures, ensuring replacement at no cost.
• Key to key drive mechanism for strong reliable performance.
• Self-locking taper design for effective mechanical locking.

Product Highlights

Utilized in various mechanical applications, the P117/16 bushing provides reliable function and support.

Product Information

Standard Information

• Bushing Type: P1
• Bore Type: Inch

Technical Specifications

• Length Through Bore: 1.94 inches
• Overall Length: 1.94 inches
• Bore Size: 1.44 inches
• Wrench Torque: 192 in-lb
• Keyseat: 3/8 x 3/16 inches
• Material: Sintered Steel or Ductile Iron
• Weight: 1.06 lb
• EAN or UPC: 662289249343
